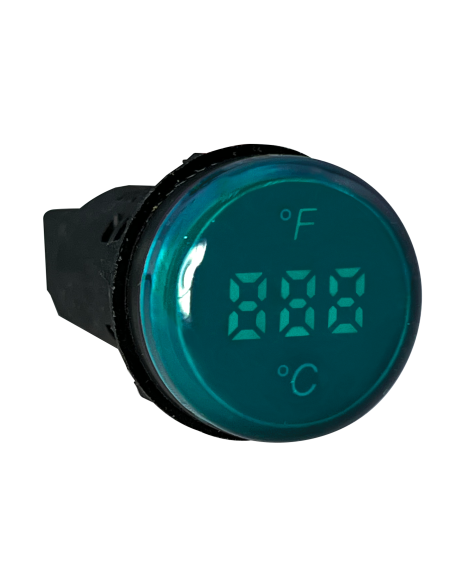

ETAB024D01
ETAB024D01
• Measures from -50°C to 80°C with high accuracy.
• Supports NTC/Molded sensors with a 1-meter standard wire length
for flexible installation.
• Designed with IP65 front protection, ideal for harsh industrial environments.
Temperature Indicator 24VDC
- Push Button Style
- Temperature Indicator 24VDC
- Push Button Rated Supply Voltage
- 240 V AC / 110 V AC / 24 V DC
- Push Button Operating Supply Voltage
- 70 V AC - 270 V AC / 80 V AC - 150 V AC / 10 V DC - 26 V DC
- Push Button Input Current
- ◁ 50 mA
- Push Button Input Wattage
- 0.6 - 0.9 W / ❮ 1 W
- Push Button Frequency
- 50/60 Hz
- Push Button Tolerance / Accuracy
- ±1%
- Push Button Surge Test
- 2 KV AS PER IEC 61000-4-5
- Push Button HV Rating
- 2 KV AS PER IEC 60243
- Push Button EFT
- 2KV
- Push Button Rated Insulation Voltage
- 500 V AC @ 1MΩ
- Push Button Display Type
- 7 Segment 3 digit
- Push Button Electrical Life
- 20K under normal operating condition
- Push Button Dimensions
- 63 x 28 mm
- Push Button Weight
- 25 g
- Degree of Protection
- Above Panel: IP65; For Terminals: IP20
- Push Button Mounting Details
- Mounting on Panel, 22.5 Dia Hole
- Push Button Connectors
- 2 Pin - screw terminal (◁0.75 to 1 sq.mm wire)
- Push Button Screw Tightning Torque
- 0.8Nm
- Push Button Housing Color
- Black
- Push Button Illuminating Lens Color
- Blue
- Push Button Operating Temperature
- -20°C TO 60°C
- Push Button Storage Temperature
- -30°C TO 65°C
- Push Button Air Humidity
- 10% - 95%
- Compliance
- RoHS, CE
- Push Button Current Indication Range
- 0A to 100A with CT for single phase / 0A to 12A
- Push Button Tolerance Scope
- ± 1 A
- Push Button Temperature Indication Range
- -50°C TO 80°C
- Push Button Sensor Wire Length
- 1 meter std
- Push Button Sensor Type
- NTC/ Molded

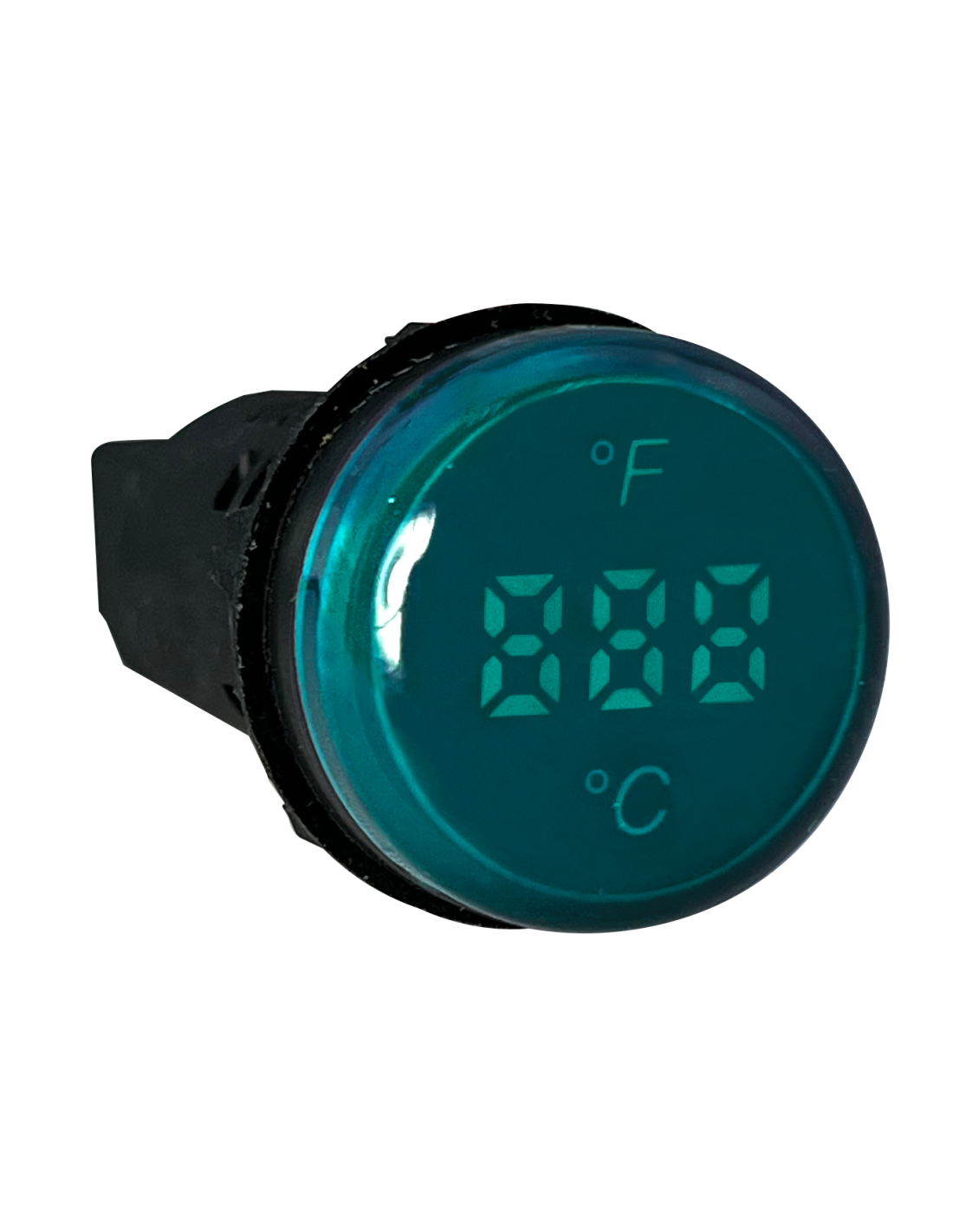

ETAB024D01
