Cable Glands / Cord Grips

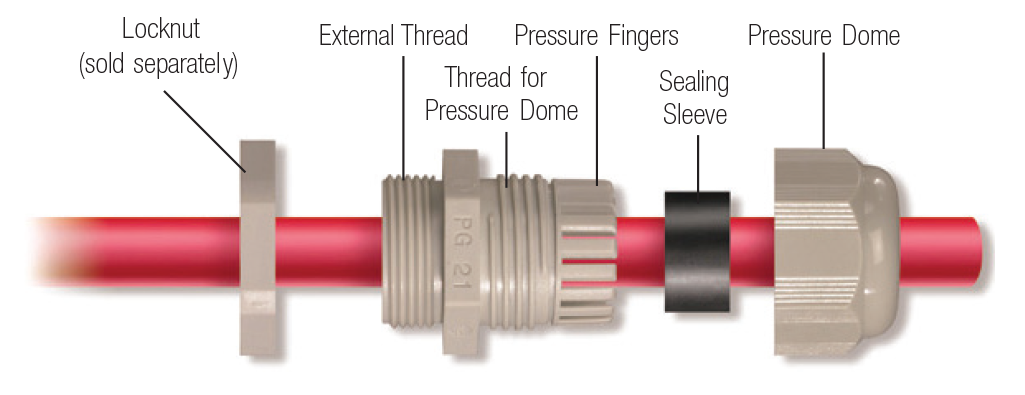

Altech Liquid Tight Strain Reliefs secure and seal cables, prevent contaminants, and relieve strain in industrial and electrical enclosures.

Seal out moisture and contaminants that can damage equipment and devices and provide protection against environmental influences. Ensure that cables stay securely in place, reduce stress on termination points and more. Altech "Cord Grips" meet all national and international standards for performance and safety and are offered in combinations of different body materials and sealing inserts to meet almost any application requirement. Choose from our Standard or Industrial Series.

Our 52-page catalog introduces Altech’s full line Liquid Tight Strain Reliefs (cord grips or cable glands) which are used to seal cable entries, keep contaminants from entering enclosures, provide strain relief and thus reduce stress on components and termination points inside enclosures. Functions include Straight-Through, Increased Strain Relief, Bend Protection, Pull/Bend Protection, Multi-conductor, Flat Cable and EMI/RFI. They can be used with almost any type of cable, cord or conductor - solid, stranded, flat, shielded, high temperature, etc.

Click Here for Catalog

OR click below for specific sections:

Standard Straight-Through
“Suitable for most applications, these are our most common parts.”
Plastic Standard Straight-Through Sets
Industrial Straight-Through
Industrial Flat Cable
Industrial Multi-Conductor
Atex
EMI/RFI
Pull/Bend Protection
Once according to DIN
Locknuts
Reducers, Enlargers and Thread Adapters
Hole Plugs
Seal Rings
Corrugated Tubes & Tube Connectors

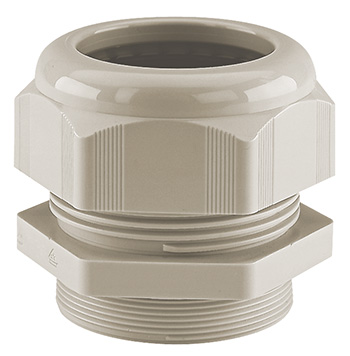

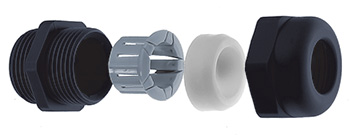

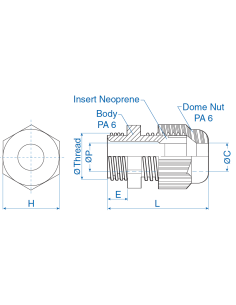

Cable Gland, Polyamide

Flat Head & Multi-Conductor Sealing

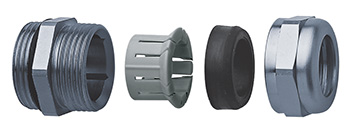

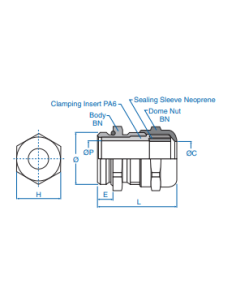

Cable Gland, Nickel-Plated Brass

Material:

Polyamide 6
Seal: Neoprene

Technical properties:

Maximum strain relief through clamping range
IP68 achieved without seal rings (PG and metric only)
Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
Gas- and watertight

Applications:

Machine and devices

Material:

EPDM, black

Technical properties:

For sealing cable gland entries when cables are not being installed.
Insert into cable gland and tighten gland to seal.

Applications:

Machine and devices

Material:

Body: Nickel-plated brass
Seal: Neoprene
Clamping insert: Polyamide 6
Sealing ring for outer thread: Nitril

Technical properties:

Seal rings included for PG and Metric sizes
Maximum strain relief through clamp range
Gas-- and watertight

Applications:

Machine and devices

Cable Gland, Nickel-Plated Brass

Cable Gland Industrial, Polyamide

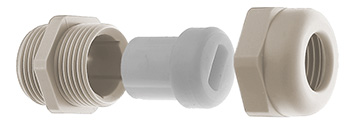

Cable Gland Industrial, Flat Seal, Polyamide

Material:

Body: Nickel-plated brass
Seal: Neoprene
Clamping insert: Polyamide 6
Sealing ring for outer thread: Nitril

Technical properties:

Seal rings included for PG and Metric sizes
Maximum strain relief through clamp range
Gas-- and watertight

Applications:

Machine and devices

Material:

Body: Polyamide PA 6
25 % Glass-fiber Reinforced
Seal: Tefabloc ECA clamping ring: Polycarbonate

Characteristics:

PG/metric thread
ECA clamping ring
Extended thread available

Technical properties:

Strain relief through clamping ring
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts

Applications:

Machines and devices
Measuring and control engineering
Plant installations

Material:

Body: Polyamide PA 6
25 % Glass-fiber Reinforced
Seal: Tefabloc ECA clamping ring: Polycarbonate

Characteristics:

PG/metric thread
ECA clamping ring
Extended thread available

Technical properties:

Strain relief through clamping ring
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts

Applications:

Machines and devices
Measuring and control engineering
Plant installations

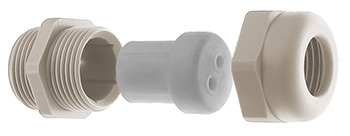

Cable Gland Industrial, Multi-conductor Seal, Polyamide

Cable Gland Industrial, Multi-conductor Seal, Polyamide, Metric Thread

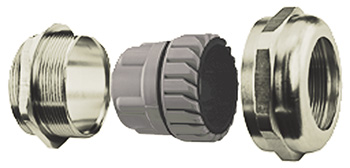

Cable Gland Industrial, Nickel-Plated Brass

Material:

Body: Polyamide PA 6
25 % Glass-fiber Reinforced
Seal: Tefabloc

Characteristics:

PG/metric thread
Multi-holed seal inserts

Technical properties:

Gas- and watertight
Completely twist protected
Combinable with various sealing inserts

Applications:

Machines and devices
Measuring and control engineering
Plant installations

Material:

Body: polyamide PA 6
25% Glass-fiber Reinforced
Seal: Tefabloc

Characteristics:

Metric Thread
Multi-holed seal inserts

Technical properties:

Gas- and watertight
Completely twist protected
Combinable with various sealing inserts

Applications:

Machines and devices
Measuring and control engineering
Plant installations

Material:

Body: Nickel-plated brass
Seal: Tefabloc or Santoprene/Nitril
ECA clamping ring: Polycarbonate
Sealing ring for outer thread: Nitril

Characteristics:

PG/Metric thread
Extended Thread available

Technical properties:

Strain relief through clamping ring
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts

Applications:

Machines and devices
Measuring and control engineering
Plant installations

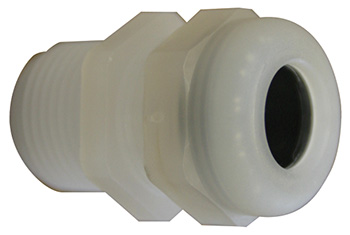

Cable Gland Industrial, PVDF

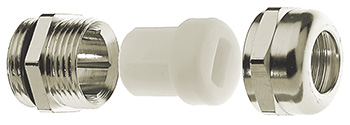

Cable Gland Industrial, Flat Seal, Nickel-Plated Brass

Corrugated Tubes

Material:

Body: Polyvinylidefluoride
Seal: Santoprene
ECA clamping ring: Polycarbonate

Characteristics:

Metric thread
ECA clamping ring
Short and long seal

Technical properties:

No halogen
Strain relief through clamping ring
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts
Chemical resistant

Applications:

Machines and devices
Measuring and control engineering
Plant installations
Food sector

Material:

Body: Nickel-Plated Brass
Seal: Tefabloc
Sealing ring for outer thread: Nitril

Characteristics:

PG/metric thread
Seal for flat cable round, angular, oval
Extended thread available

Technical properties:

Gas- and watertight
Completely twist protected
Combinable with various sealing inserts

Applications:

Machines and devices
Measuring and control engineering
Plant installations

Protect your cables with corrugated tubes. Made from flame retardant Polyamide 6, these tubes will protect cables from impact and abrasion. They are highly flexible and have a high fatigue life, making them ideal for any installation. 15 sizes are available in standard tube or with a lateral slit. Add straight or 90° connectors with seals to complete the installation.

Click here to see the full line.

Filters

Showing 1-24 of 1074 item(s)

8 (mm) Flathead sealing insert for standard glands

7217701

Flat head sealing for standard glands Features: For sealing cable glands when cables are not being installed Insert into cable gland and tighten gland to seal
