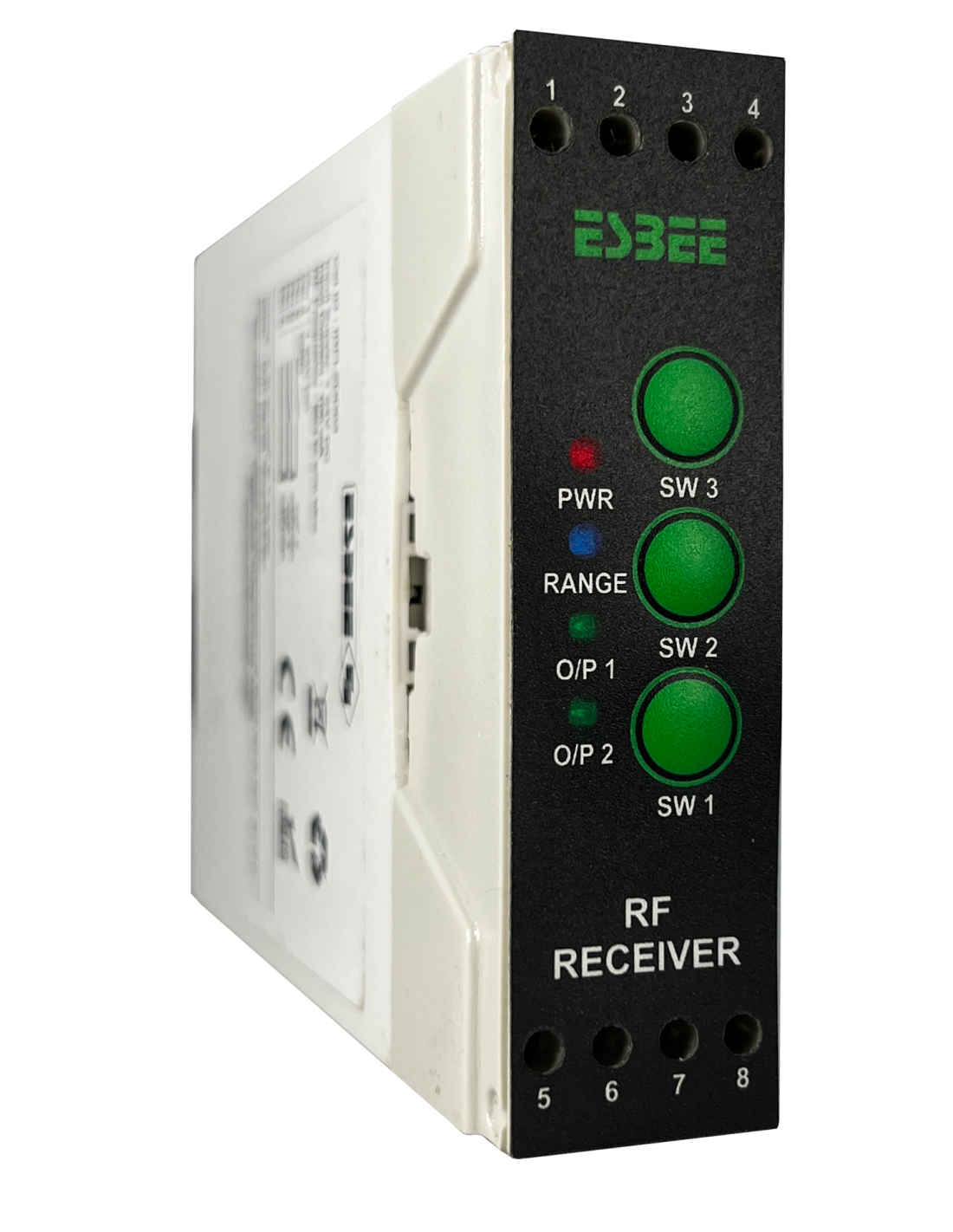

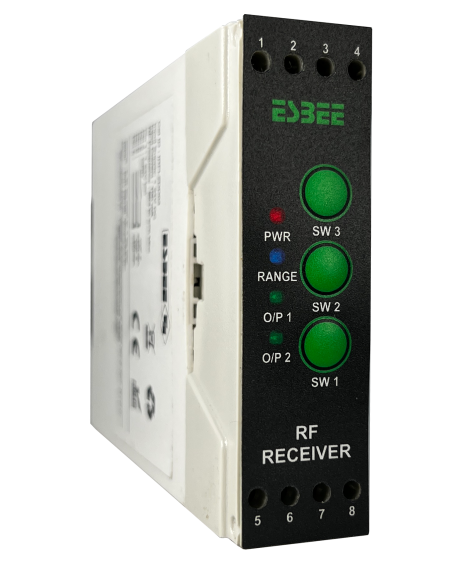

IRFLZDD03 RF Reciever
- Quick and Easy Installation
- Excellent Mechanical Connection With
- Various Actuators
- Replaceable Batteries
- Rugged and Waterproof With IP 54 For
- Transmitter and IP 20 For Receiver
- Reliable and Secure
- Over the Air Configuration
Datasheet
- Rated Voltage
- 24V DC
- Color
- Gray
- Push Button Input Current
- 250mA
- Push Button Mounting Details
- DIN Rail
- Push Button Operating Temperature
- -10 ~ 60 °C
- Push Button Storage Temperature
- -10 ~ 65 °C
- Push Button Air Humidity
- 95% relative humidity at Ambient temperature
- Compliance
- RoHS
- Push Button Wattage
- 6W
- RF Receiver Outer Dimensions
- H75×L110×W24mm
- Relay Contact Type
- Potential free NO contact
- LED Indications
- Power: Red Signal: Blue O/P 1: Green O/P 2: Green
- Push Button Operating Range
- 100m, +/-10m
- RF Receiver Input
- 5.08mm Pitch Connector, PIN 1 & 2
- RF Receiver Output
- O/P1: 5.08mm Pitch Connector, PIN 5(NO1) & 6(POLE1) O/P1: 5.08mm Pitch Connector, PIN 7(NO2) & 8(POLE2)
- Relay Operating Mode
- 1. Latch to push-release to push. 2. 1 Sec Pulse on push. 3. 300ms Pulse on push. Modes are settable with keys on receiver.
- Relay Contact Rating
- 5A
- No. of Relay Contact
- 2 NO Contacts (Max)
- Signal Frequency Band
- 863 to 870MHz
- Push Button Supply Voltage
- 15–30V DC
- IP Test
- IP20 Comply
- RF Receiver Marking
- Label on remote (Power rating, ID etc.)
