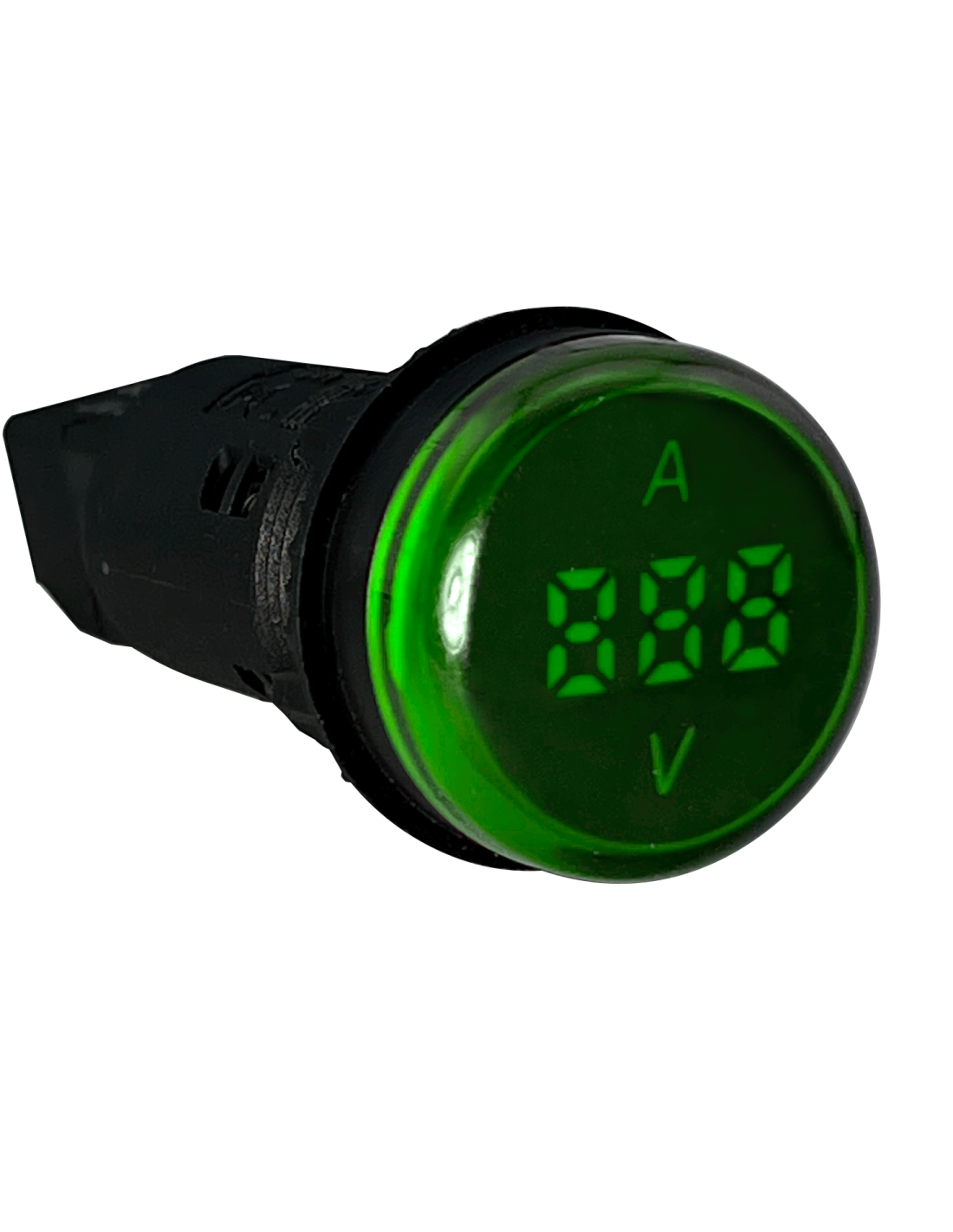

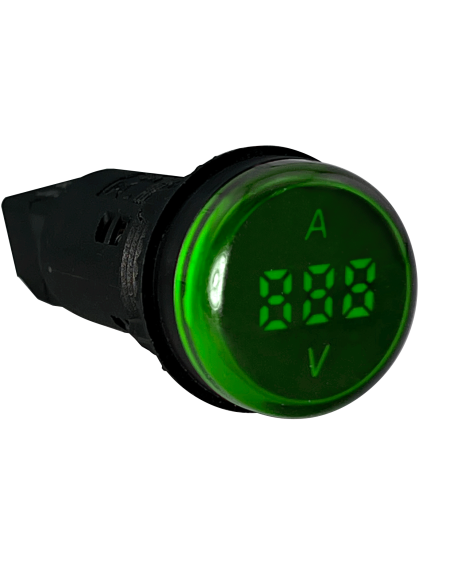

EVAG240A01

Part Number EVAG240A01

Voltage Indicator 24VDC

Covers a wide range from 10 Hz to 90 Hz for stable system performance.
Works with 240V AC and 110V AC, ensuring compatibility across industries.
Essential for industrial automation, electric vehicle chargers, marine & aviation, production lines, and testing labs to ensure operational stability.

*Color of product images may not be 100% true to actual product color.*

Voltage Indicator 240VDC

Push Button Style: Voltage Indicator 24V0DC
Push Button Rated Supply Voltage: 240 V AC / 110 V AC / 24 V DC
Push Button Operating Supply Voltage: 65 V AC - 280 V AC / 80 V AC - 150 V AC / 10 V DC - 26 V DC
Push Button Input Current: ◁ 50 mA
Push Button Input Wattage: 0.6 - 0.9 W / ❮ 1 W
Push Button Frequency: 50/60 Hz
Push Button Indicating Voltage: 65 V AC - 280 V AC / 80 V AC - 150 V AC / 10 V DC - 26 V DC
Push Button Tolerance / Accuracy: ±1%
Push Button Surge Test: 2 KV AS PER IEC 61000-4-5
Push Button HV Rating: 2 KV AS PER IEC 60243
Push Button EFT: 2KV
Push Button Rated Insulation Voltage: 500 V AC @ 1MΩ
Push Button Display Type: 7 Segment 3 digit
Push Button Electrical Life: 20K under normal operating condition
Push Button Dimensions: 63 x 28 mm
Push Button Weight: 25 g
Degree of Protection: Above Panel: IP65; For Terminals: IP20
Push Button Mounting Details: Mounting on Panel, 22.5 Dia Hole
Push Button Connectors: 2 Pin - screw terminal (◁0.75 to 1 sq.mm wire)
Push Button Screw Tightning Torque: 0.8Nm
Push Button Housing Color: Black
Push Button Illuminating Lens Color: Yellow
Push Button Operating Temperature: -20°C TO 60°C
Push Button Storage Temperature: -30°C TO 65°C
Push Button Air Humidity: 10% - 95%
Compliance: RoHS, CE

Part Number EVAG240A01
