800XC-CU - Analog Cycle Timer, DPDT
800XC-CU
800XC-CU - Analog Cycle Timer, DPDT
22mm DIN Rail
Features
• Cyclic with Unequal ON and OFF Time
• 6 Time Ranges, Seconds/Minutes/Hours
• Universal Supply Voltage
• DIN Rail / Back Panel Mount
• Finger Safe Terminals

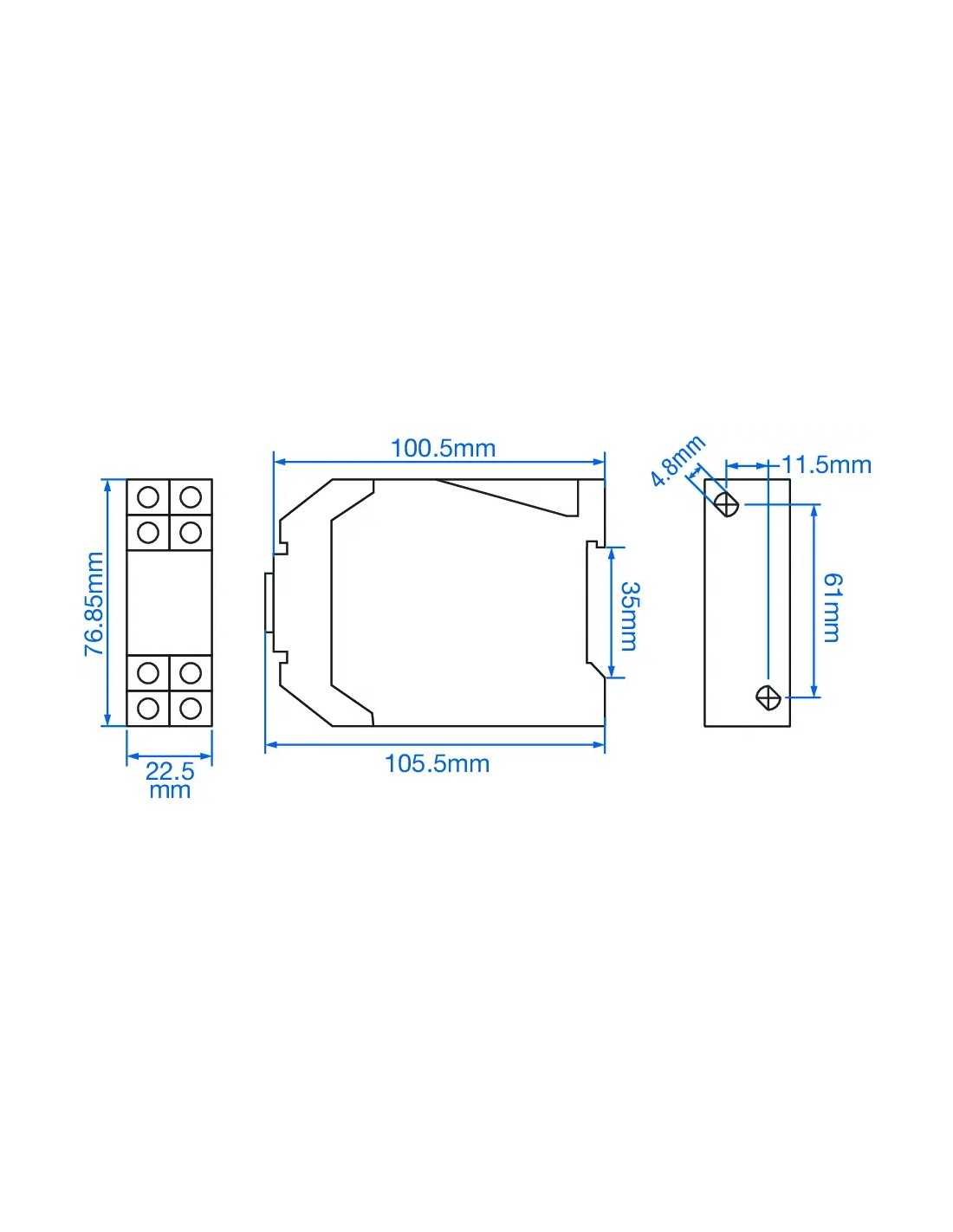

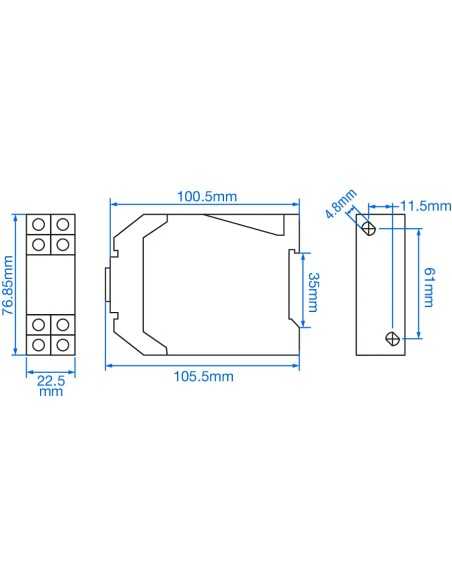

• Size: 22.5mm (width)
DATA Sheet Link

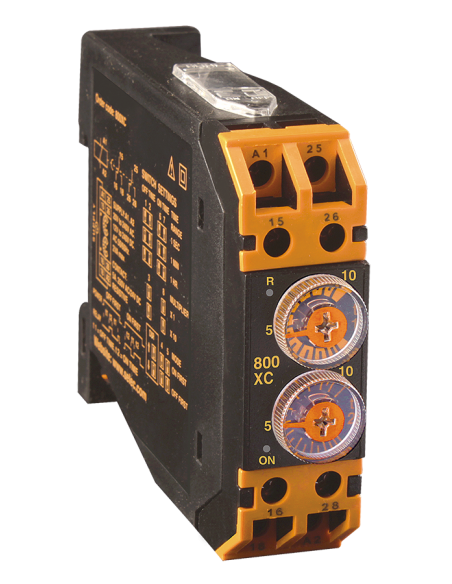

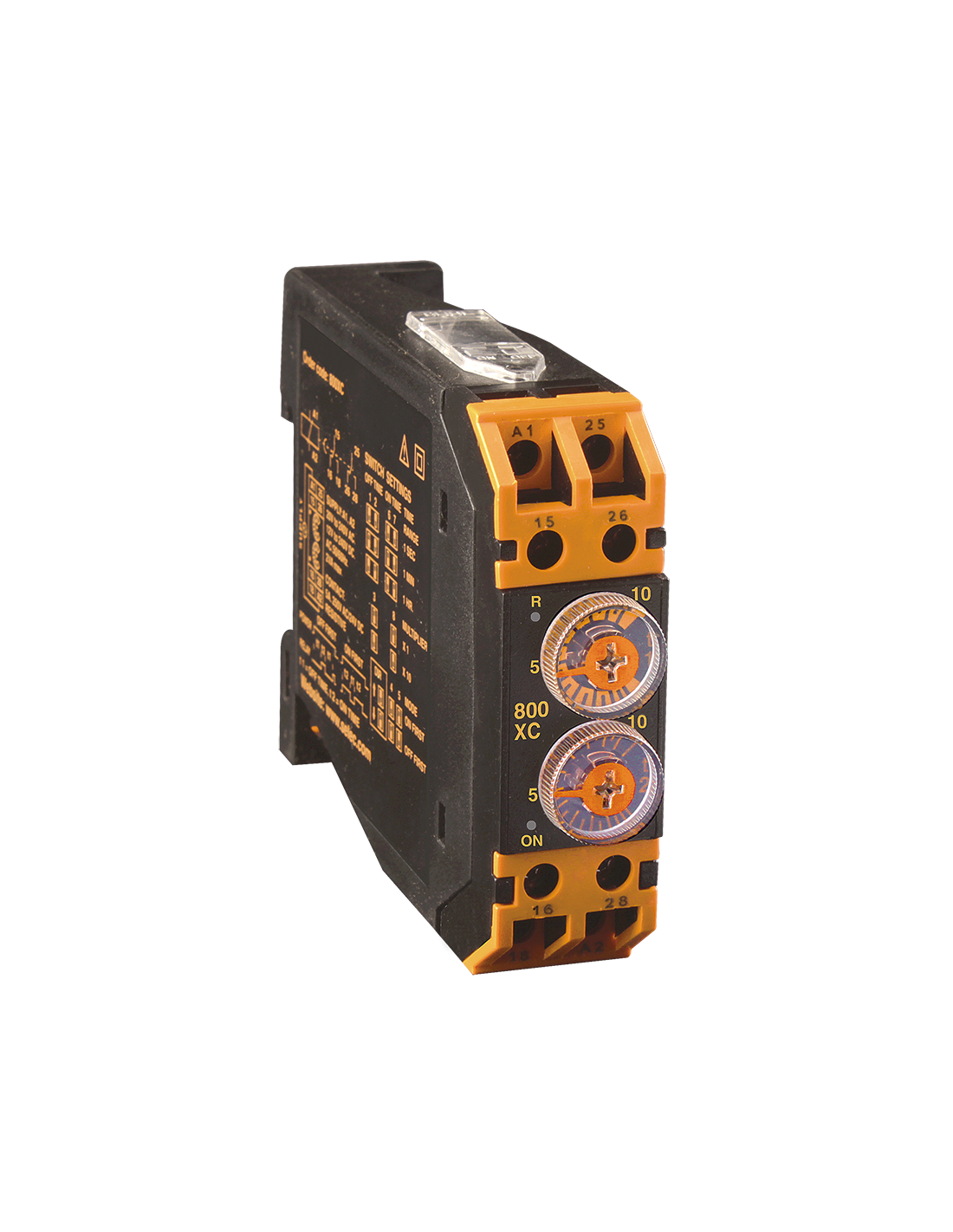

< Product photo may vary depending on part number selection.
Analog / Digital Protection Relays
Protection
Altech is pleased to offer a variety of protection relays covering:
Phase Monitoring
Voltage Monitoring
Current Monitoring
Frequency Monitoring
Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.
- Process Controllers - Supply Voltage
- 20 to 240V AC; 12 to 240V DC
- Process Controllers - LED Indication
- LED 1: Power On, LED 2: Relay
- Process Contollers - Input Voltage
- 20-240V AC (50/60Hz) and 12-240V DC
- Process Controllers - Main Output
- DPDT - 2 C/O - 5A @ 230V AC / 24 V DC, resistive
- Process Controllers - Reset
- On interruption of power; Reset time greater than 100m sec
- Process Controllers - Power Consumption
- 2VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 110 grams (.242 lbs)
- Process Controllers - Display Type
- 7 Segment LED Display
- Process Controllers - Modes
- Cyclic ON first or OFF first
- Process Controllers - Time Ranges
- 0-1 sec/min/hr (On time) / 0-10 sec/min/hr (ON time) / 0-1 sec/min/hr (OFF time) / 0-10 sec/min/hr (OFF time)
- Process Controllers - Timer
- Setting +/-5% of Full Scale Repeat +/-0.5% or 50m sec.
