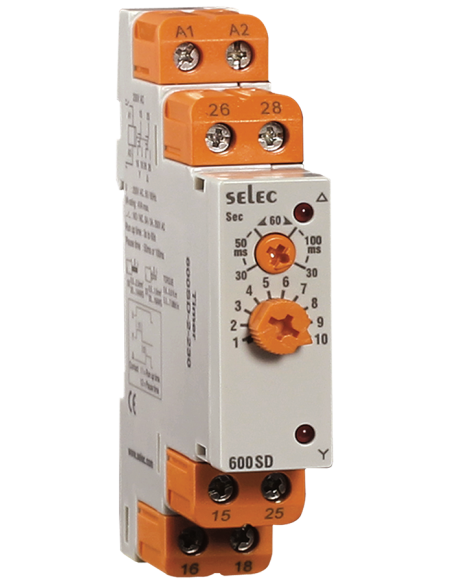

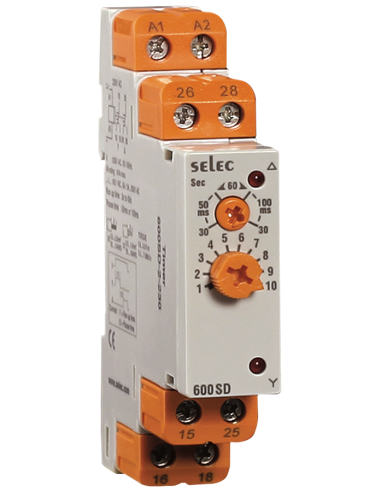

600SD-2-230-CU - Analog Star-Delta Timer
600SD-2-230-CU
600SD-2-230-CU - Analog Star-Delta Timer
17.5mm DIN Rail
Features
• Star Delta
• 2 Time Ranges
• DIN Rail

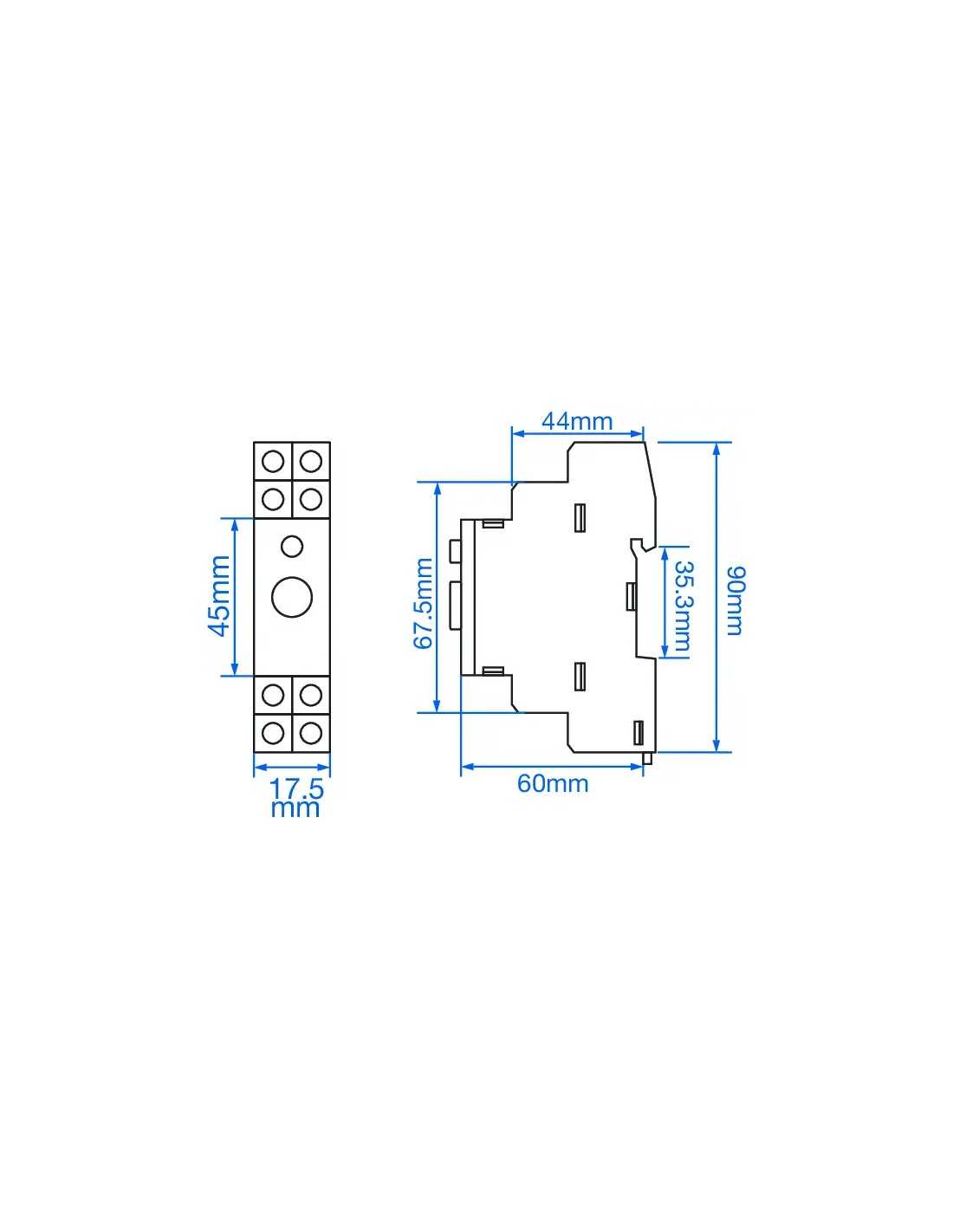

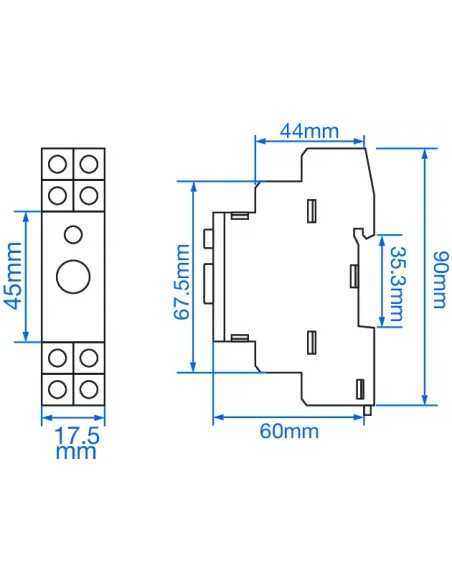

• Size: 17.5mm (width)
DATA Sheet Link
< Product photo may vary depending on part number selection.
Analog / Digital Protection Relays
Protection
Altech is pleased to offer a variety of protection relays covering:
Phase Monitoring
Voltage Monitoring
Current Monitoring
Frequency Monitoring
Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.
- Process Controllers - Supply Voltage
- 230V AC
- Process Controllers - LED Indication
- LED 1: Power On, LED 2: Relay
- Process Contollers - Input Voltage
- 230V AC and 110V AC (50/60Hz)
- Process Controllers - Main Output

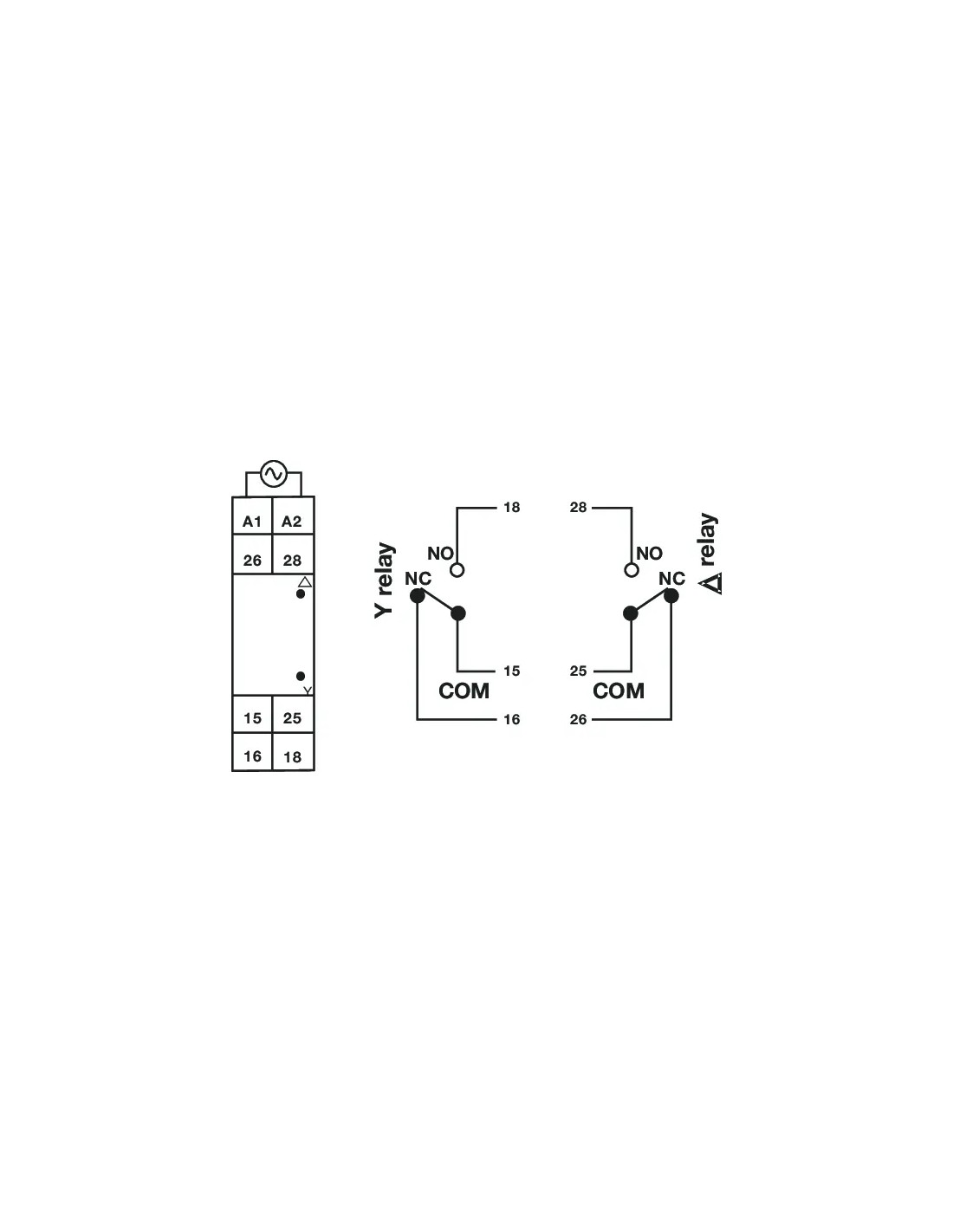

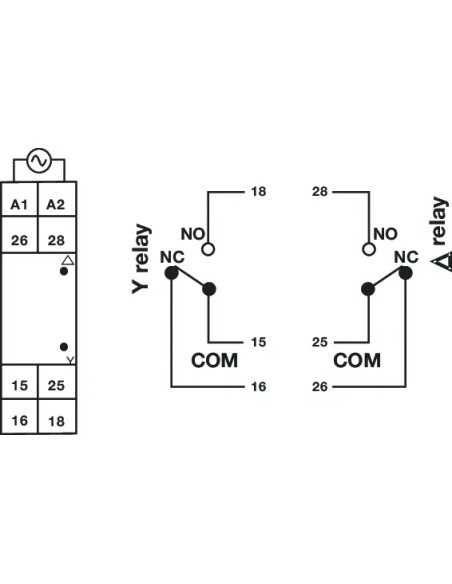

- SPDT -1C/O - Relay each for star and delta
- Process Controllers - Reset
- On interruption of power; Reset time greater than 100m sec
- Process Controllers - Power Consumption
- 4VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 73 grams (.163 lbs)
- Process Controllers - Display Type
- Analog Timer
- Process Controllers - Modes
- Star-Delta
- Process Controllers - Time Ranges
- 3 -30 sec / 6 - 60 sec Pause time: 50/100m sec
- Process Controllers - Timer
- Setting +/-5% of Full Scale Repeat +/-0.5% or 50m sec. Pause time accuracy: 5% or +/-5m sec
