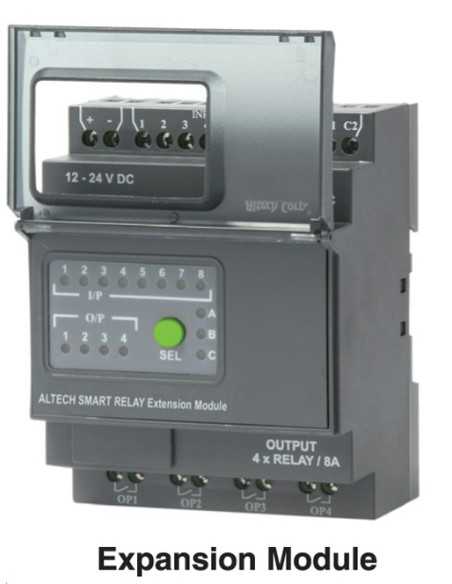

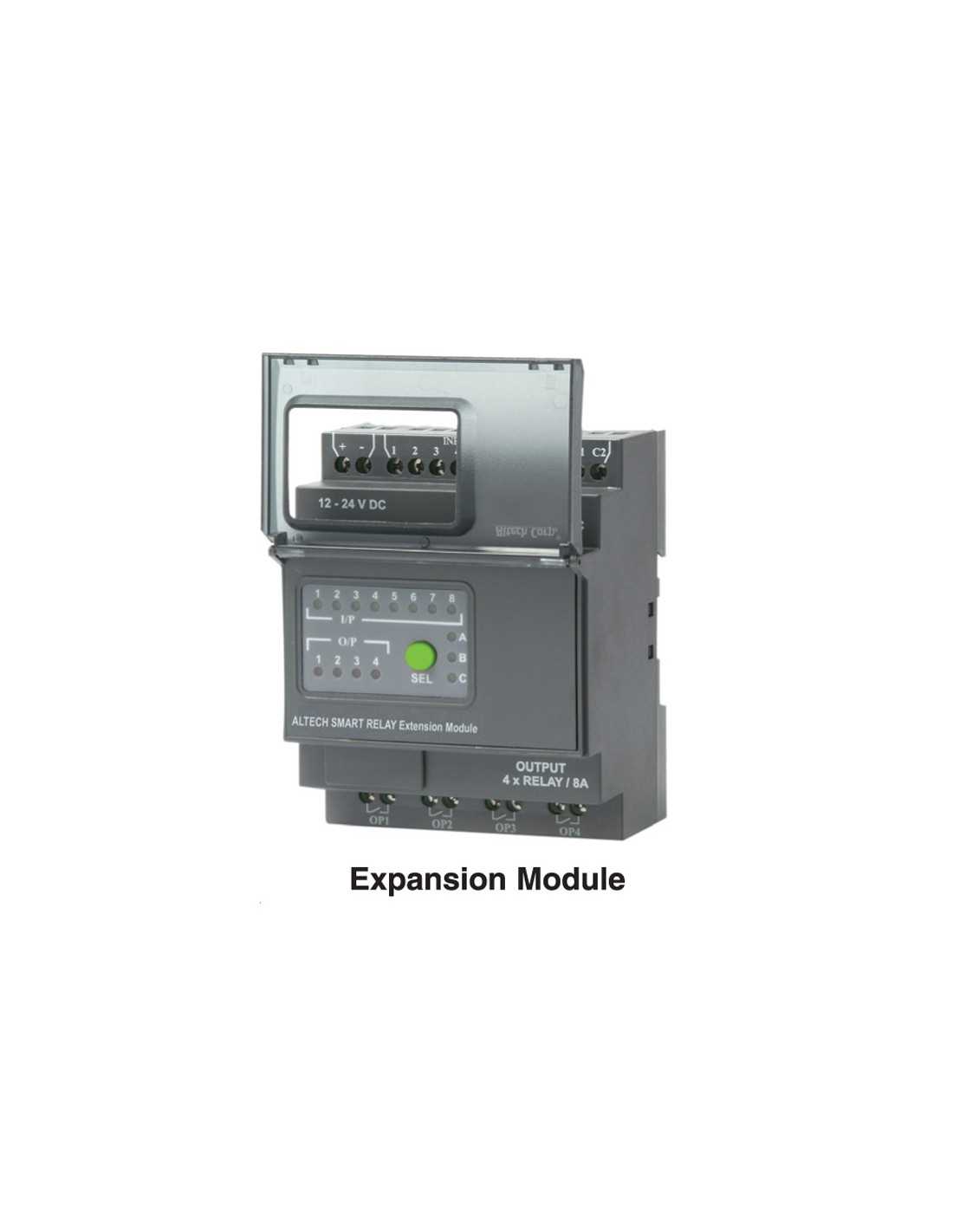

ASR-E24DC - Expansion Module Smart Relay

Part Number ASR-E24DC

Standard Features

Supports upto 48 I/Os (32 digital inputs & 16 digital outputs)
DST Feature Available
Backlit LCD Screen for display & modification of pre-selected parameters of functional blocks, viewing I/O status and programming on the device
PC software for programming, online & offline simulation, documentation & printing
Designed for use in automation for commercial & Industrial sectors
Modbus Communication

Downloads:

Smart Relays - Module Type: Expansion Module
Smart Relays - Digital Inputs: 6
Smart Relays - Digital Input Range: (0-4VDC) OFF,(8-26.4VDC) ON
Smart Relays - Analog Inputs: 2 (can be used as Digital Inputs)
Smart Relays - Analog Input Range: 0 to 10 VDC
Smart Relays - Digital Relay Output: 4 NO (8A@240V AC, 5A@30V DC)
Smart Relays - Weight: 0.5 lb. (225 g)
Smart Relays - I/O Extensions (Max.): 3
Smart Relays - Utilization Category: AC-15- Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A DC-13- Rated Voltage (Ue): 24/125/250 V, Current (Ie): 2.0/0.22/0.1 A
Smart Relays - Power Reserve (For Clock Only): 150h at -10°C to +55°C
Smart Relays - Operating temperature: -10°C to +55°C
Smart Relays - Storage temperature: -25°C to +70°C
Smart Relays - Humidity (Non Condensing): 95% (Rh)
Smart Relays - Enclosure: Flame Retardant UL 94-V0
Smart Relays - Mounting: Base / DIN Rail
Smart Relays - Degree of Protection: IP 20 for Terminals, IP 40 for Enclosure
