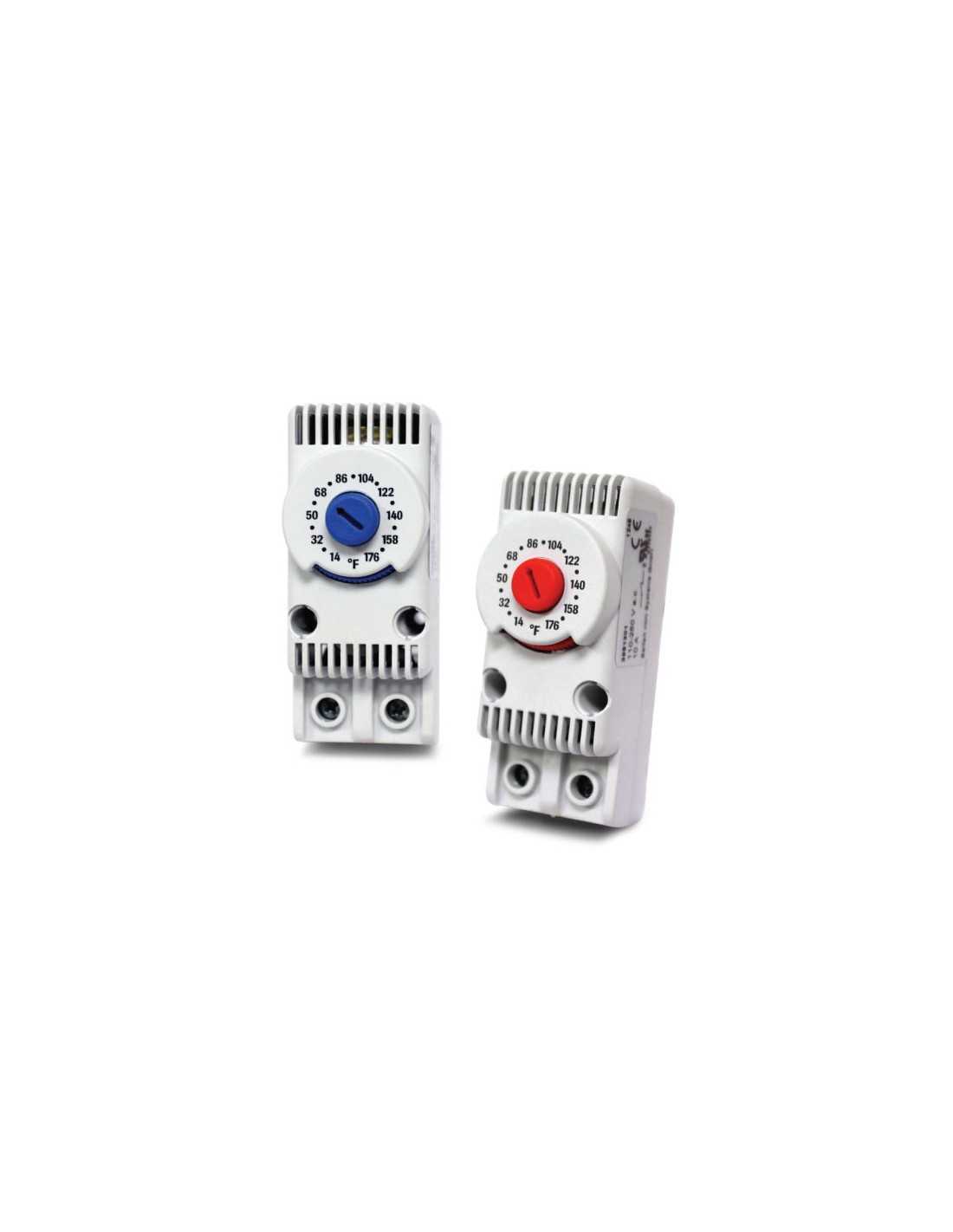

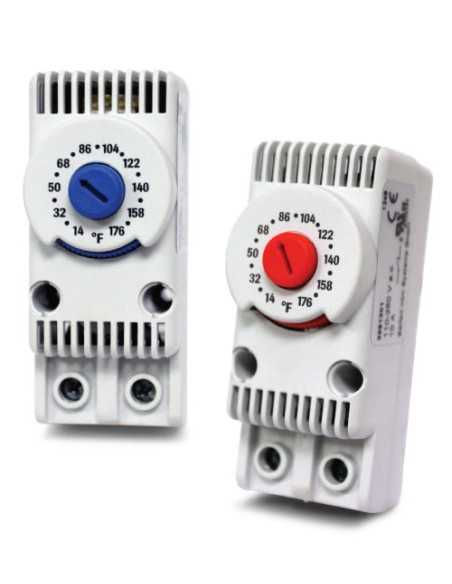

    APT-CNOC - Mechanical Thermostats

    APT-CNOC

    Panel Mount Components, Mechanical Thermostats

      • Adjustable Temperature Control
      • Wide Adjustment Range
      • Color Coded Dial (Red: Heating, Blue: Cooling)
      • DIN Rail Mountable

       DATA Sheet Link

      < Product photo may vary depending on part number selection.


      Mechanical thermostats - Rated Voltage
      110-250 VAC
      Mechanical thermostats - Rated Current
      10A
      Mechanical thermostats - Max. Rated Current
      15A
      Mechanical thermostats - Lifetime
      greater than 100,000 cycles
      Mechanical thermostats - Terminal Size Acceptability
      23-13 AWG (0.75-2.52)
      Mechanical thermostats - Protection Level
      IP20
      Mechanical thermostats - Enclosure Material
      PA66, UL94V-0
      Mechanical thermostats - Function
      Cooling
      Mechanical thermostats - Contact
      NO
      Mechanical thermostats - Temperature Scale
      Celsius
      APT-CNOC
