GZMB4 - Plug-In Relay Socket for R4 Series
GZMB4
GZMB4 Plug-In Relay Socket for R4 Series
Standard Features
Plug-in relay socket designed for R-series industrial relays
Spring terminal connections for secure and reliable wiring
Suitable for 35 mm DIN rail mounting applications
Rated up to 10 A, 300 V AC
Four-pole configuration
Accepts wire sizes from 24–16 AWG (0.2–1.5 mm²)
DATA Sheet Link
- Industrial Relays - Rated Voltage
- 300 V AC
- Industrial Relays - Compatible Relay Series
- R4
- Industrial Relays - Terminal Type
- Spring terminals
- Industrial Relays - Mounting Type
- 35 mm DIN Rail Mount
- Industrial Relays - DIN Rail Standard
- PN-EN 60715
- Industrial Relays - Dimensions (accessory)

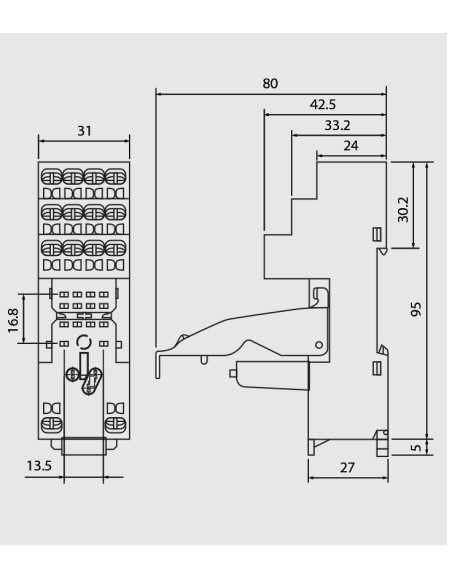

- 95 × 31 × 42.5 (80) mm
- Industrial Relays - Number of Poles
- 4
- Industrial Relays - Contact Rating
- 10A
- Industrial Relays - Max. Cable Cross Section
- 1 × 0.2–1.5 mm²
- Industrial Relays - Wire Size (AWG)
- 24–16 AWG
- Industrial Relays - Stripping Length
- 9–11 mm
