PIR4-012DC-00LV - GZM4 Socket, PIR4 Interface Relay
PIR4-012DC-00LV
PIR4 Interface Relay
GZM4 Socket - PIR4 4PDT DC Coil
Standard Features

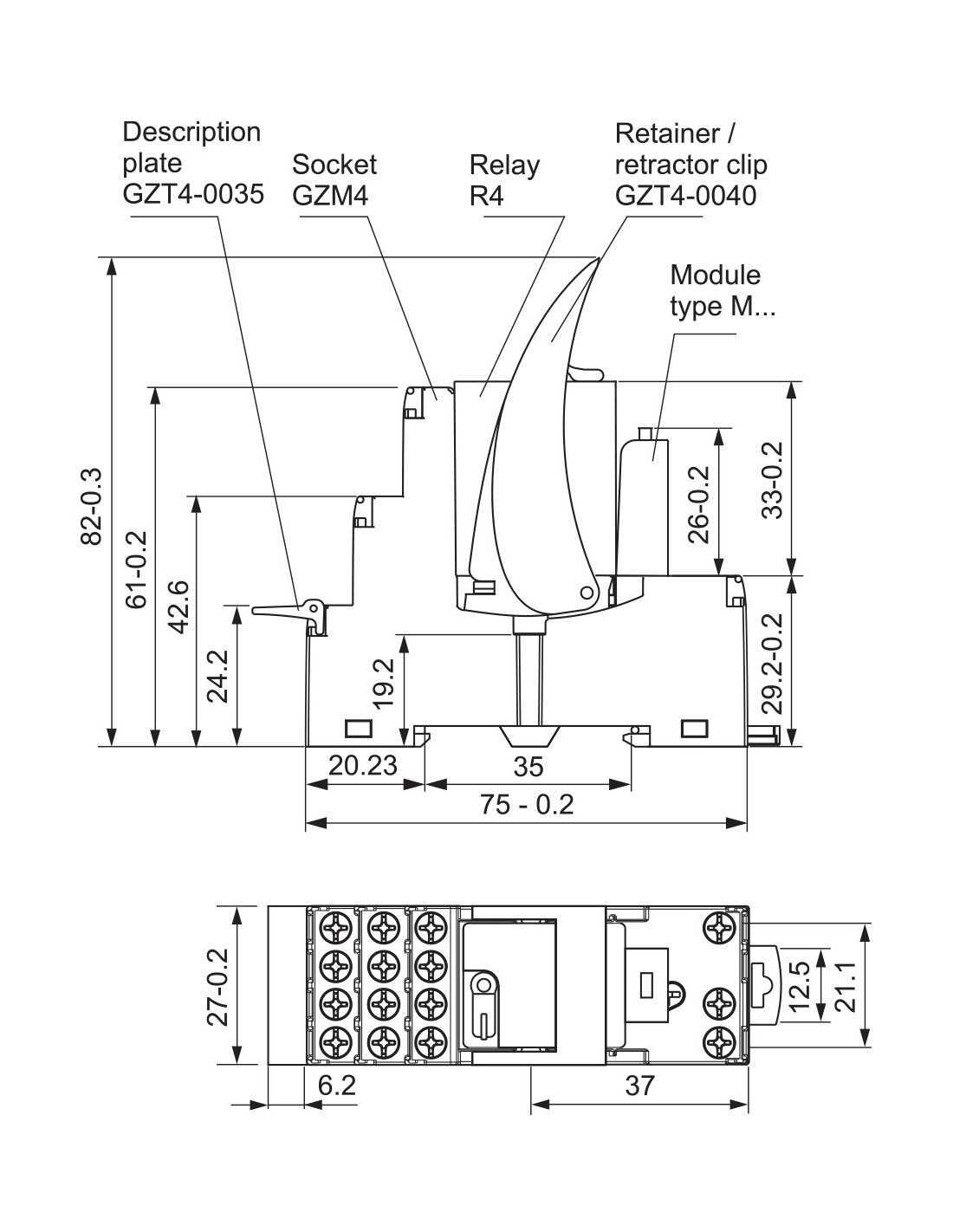

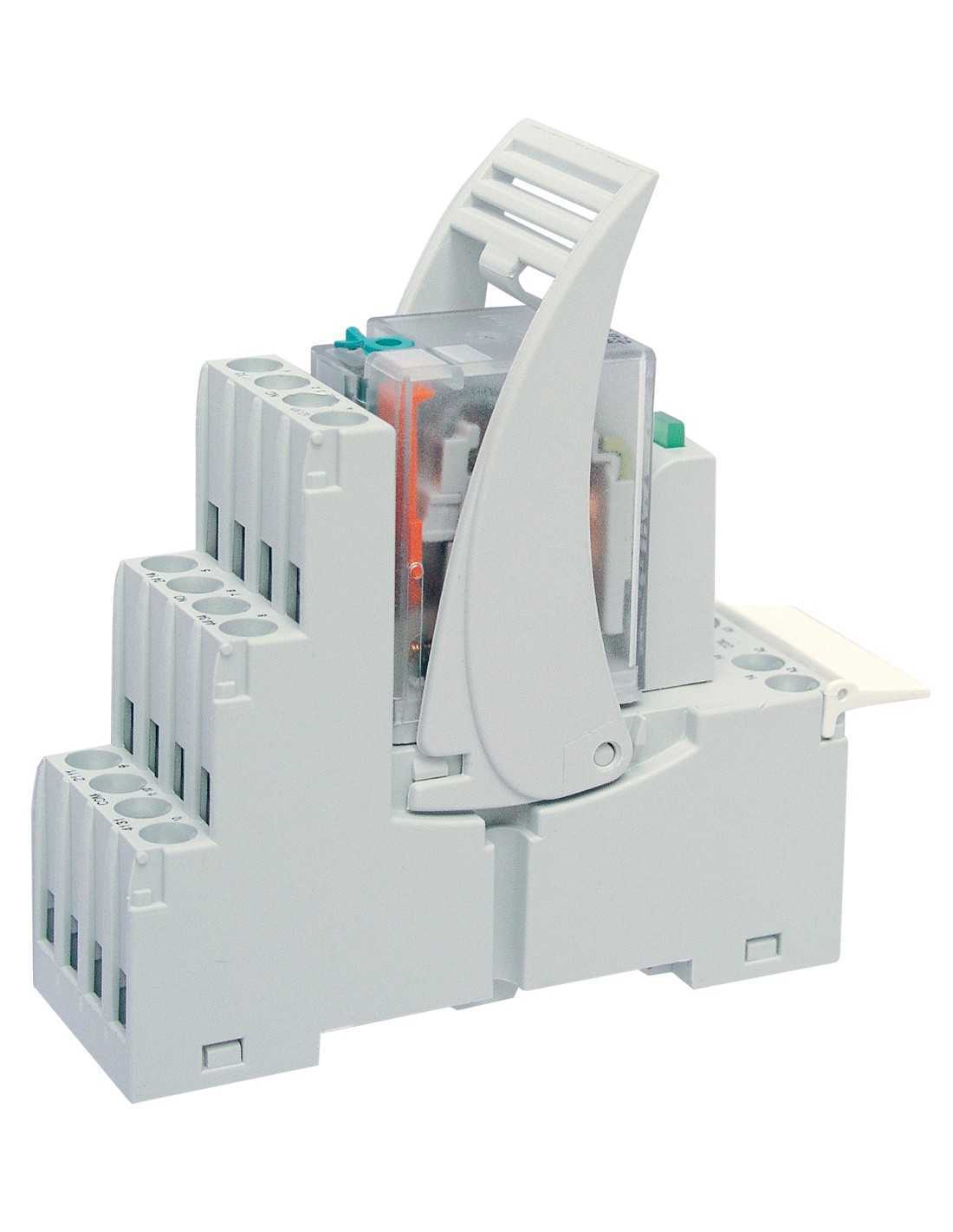

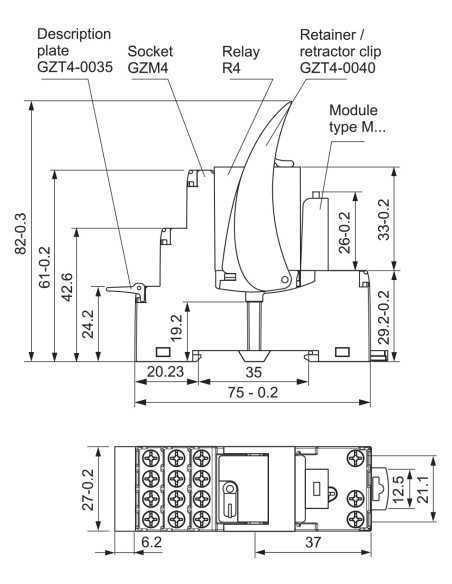

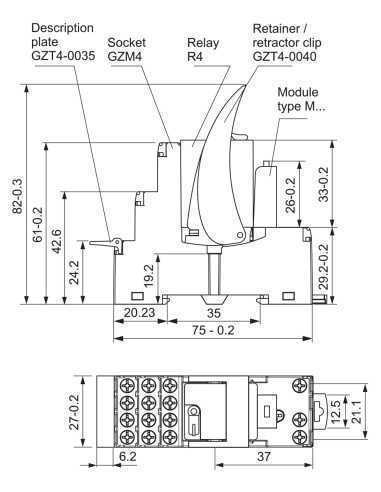

Interface relay PIR4 with socket GZM4, designed for continuous operation, consists of: electromagnetic relay R4N, grey plug-in socket GZM4, signalling / protecting module type M..., retainer / retractor clip GZT4-0040 (plastic), white description plate GZT4-0035
Pre-assembled relay and socket combination simplifies installation and maintenance
Compact industrial design helps conserve panel space
DPDT relay with cadmium-free contacts provides reliable switching performance
Available with AC or DC coil voltages for application flexibility
35 mm rail mount acc. to EN 60715 or on panel mounting with two M3 screws
May be linked with interconnection strip type ZGGZ4
DATA Sheet Link
- Industrial Relays - Coil Voltage (V)
- 12
- Industrial Relays - Coil Type
- DC
- Industrial Relays - Coil resistance at 20 °C in Ω
- 160
- Industrial Relays - Coil operating range max. (at 55°C)
- 13.2
- Industrial Relays - Coil operating range min. (at 20°C)
- 9.6
- Industrial Relays - Type of Module
- M91G
- Industrial Relays - Current
- 6A
- Industrial Relays - Voltage
- 250V AC / 24V DC
- Industrial Relays - Wire Range
- 2.5 mm2 / 24-14 AWG
- Industrial Relays - Torque
- 0.7 Nm
PIR4-012DC-00LV
