PI6-1T-5...32VDC - SPST(1NO) DC Coil, Solid State Module Relay
PI6-1T-5...32VDC
PI6-1T SPST(1NO) DC Coil, Solid State Module Relay
Standard Features
Width 6.2 mm
PI6-1T - with triac output
35 mm rail mount
Maybe linked with interconnection strip type ZG20
Equipped in green LED
DATA Sheet Link
- Industrial Relays - Number and type of contacts
- SPST (1NO)
- Industrial Relays - Rated / max. switching voltage AC
- 400 V / 440 V
- Industrial Relays - Min. switching voltage
- 20 V
- Industrial Relays - Rated load (capacity) AC1
- 1.2 A / 400 V AC
- Industrial Relays - Min. switching current
- 10 mA
- Industrial Relays - Rated current
- 1.2A
- Industrial Relays - Rated power consumption
- DC: 0.3 W; 5...32 V DC at 24 V, AC/DC: 0.3 VA / 0.3 W; 24 V AC/DC and 1.6 VA / 1.6 W; 230 V AC/DC
- Industrial Relays - Insulation rated voltage
- 600 V AC
- Industrial Relays - Insulation pollution degree
- 2
- Industrial Relays - Operating time (typical value)
- 10 ms max. (zero turn-on)
- Industrial Relays - Release time (typical value)
- 10 ms max.

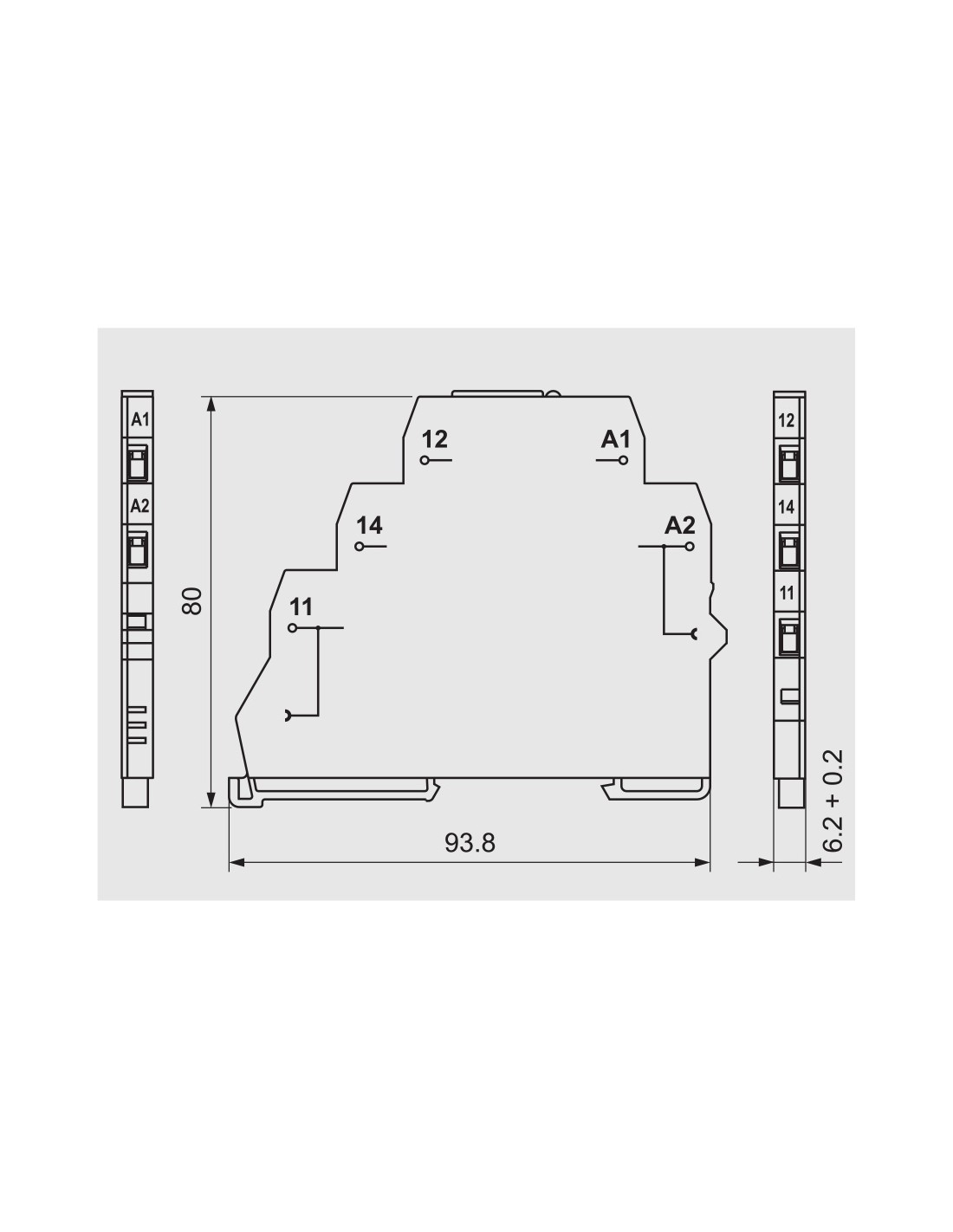

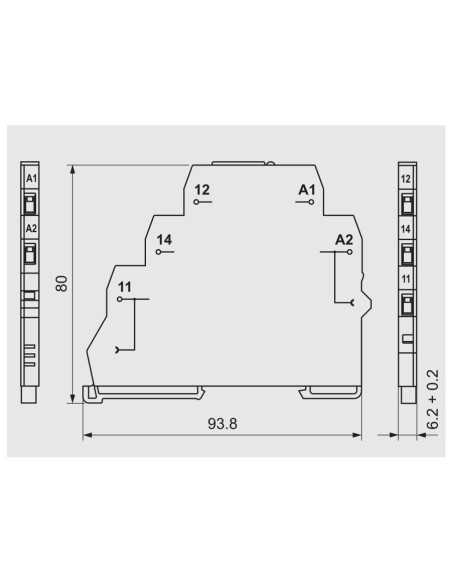

- Industrial Relays - Dimensions (L x W x H)
- 93.8 x 6.2 x 80 mm
- Industrial Relays - Weight
- 40 g
- Industrial Relays - Storage Temperature
- -40...+70 °C
- Industrial Relays - Operating Temperature
- -40...+55 °C
- Industrial Relays - Protection Category
- IP 20 PN-EN 60529
- Industrial Relays - Environmental Protection
- RTI PN-EN 116000-3
- Industrial Relays - Rated input voltage Un
- 5…32 V DC
- Industrial Relays - Power of input circuit
- 0.3 W at 24V
- Industrial Relays - Dielectric strength Input - output (type of insulation: reinforced)
- 4000 V AC 50/60 Hz. 1 min..
- Industrial Relays - Max. non-repeat surge current
- 30 A^2 t equals 20 ms
- Industrial Relays - I^2t for fusing
- 5.1 A2s t equals 1-10 ms
- Industrial Relays - dI/dt
- 50 A/μs
- Industrial Relays - dV/dt
- 40 V/μs
- Industrial Relays - Turn-off voltage
- AC: ≥ 0.2 Un; DC: ≥ 0.1 Un
