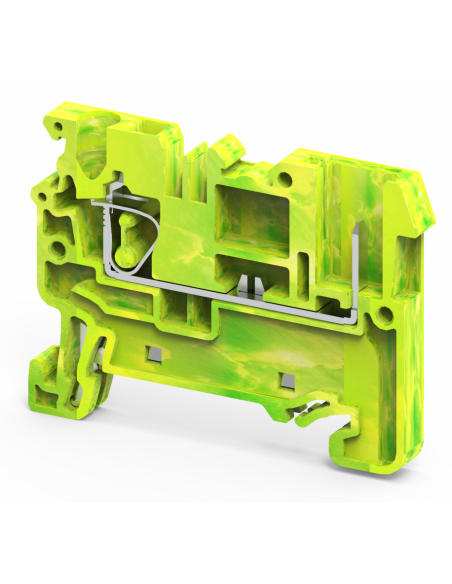

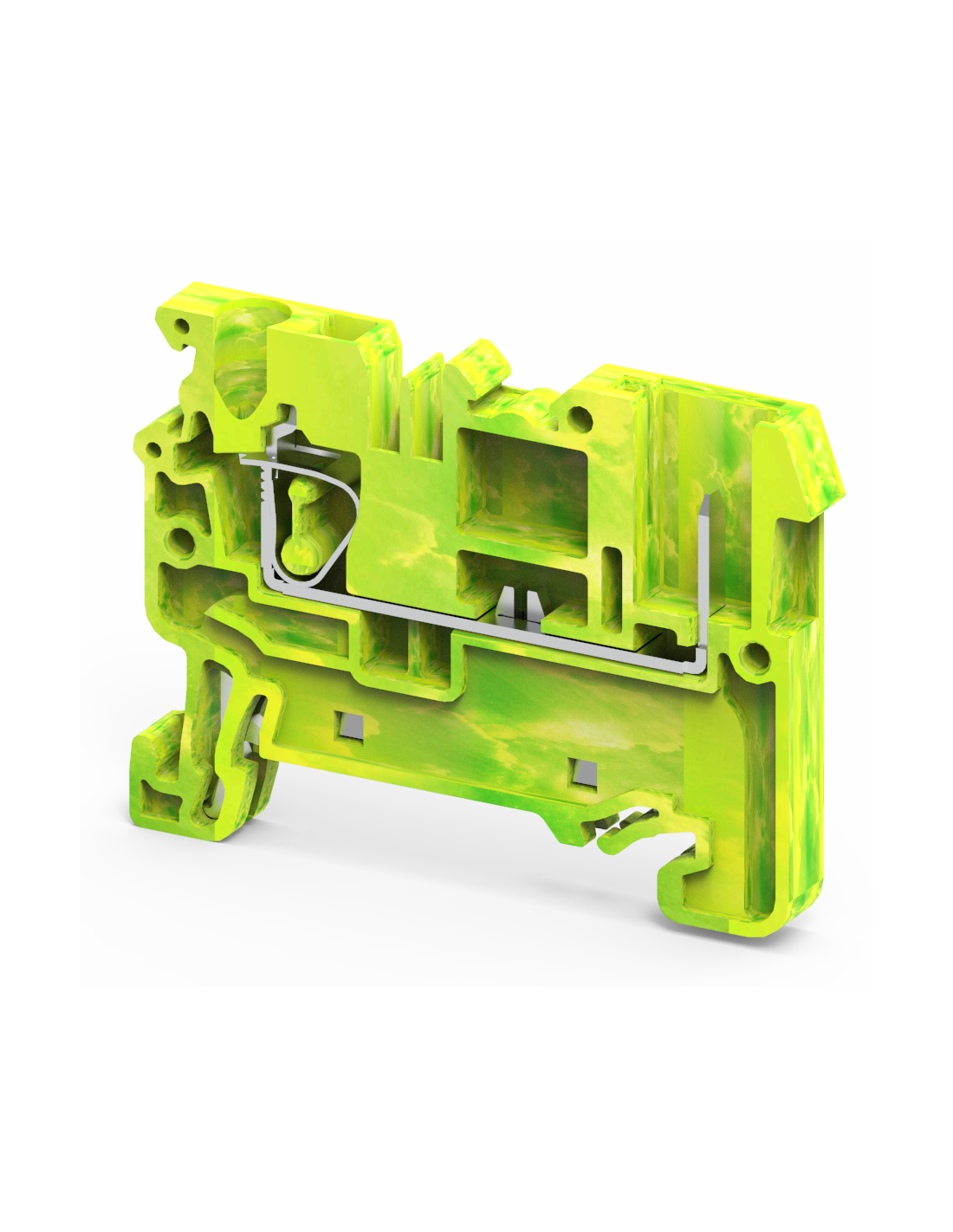

CXG2.5/2B Pluggable Terminal Block
CXG2.5/2B
CXG2.5/2B DIN Rail Base Ground Terminal Plug, 2 Pole
cSAus/cRUus: 24-12AWG, 300V | IEC 60947-7-1: 500V | 10mm Wire Strip Length, Earth (ground)
FEATURES
- Pluggable Terminal Blocks
- Pluggable Wire to DIN Rail connection
(CX2.5/1B-CX2.5PN) - Pluggable Wire to Wire Connection
- (CX2.5SN - CX2.5PN)
- Easy Clip multi-wire solution
- Polarizing plug wit coding pin CXPOL
- 2/4 way strain relief
(CXS2RN, CXS4RN)
Data Sheet
- Length (mm)
- 51.0
- Width (mm)
- 5
- Standard Pack
- 100
- Poles
- 2
- Weight per piece
- 8.8 g
- Approvals
- CE, c SA us, c RU us, IEC 60947-7-1
- Wire Size (solid/stranded) - c SA us, c RU us
- 24-12 AWG
- Voltage Rating - c SA us, c RU us
- 300 V
- Current Rating - c SA us, c RU us
- N/A
- Wire Size (solid/stranded) - IEC 60947-7-1
- N/A
- Voltage Rating - IEC 60947-7-1
- 500 V
- Current Rating- IEC 60947-7-1
- N/A
- Insulation Material
- Polyamide 66
- Wire Stripping Length
- 10 mm
- Screwdriver
- Flat Head 0.5 x 3 mm
- Height w DIN Rail 35 x 7.5 mm
- 38.2 mm
- Height w DIN Rail 35 x 15 mm
- 45.7 mm
