AMD-TUWH-CU - TU Series Tunnel Sensor
AMD-TUWH-CU
TU Series Tunnel Sensor
Altech TU Series Tunnel Sensors are used where highest detection capacities, sensitivity and reliability are needed. The user can choose between different control units depending on the complexity of his application. Applications include conveyors in the Plastic and Recycling Industry. The stainless steel housing also allows installation in the food industry. The unit is maintenance and calibration free.
Standard Features
- Possible to Disassemble
- Highest Sensitivity
- Custom Size (height and width)
- Stainless Steel Housing
- Different Control Units
- IP65
Downloads:
• Data Sheet
- Metal Detection - Operating Temp.
- 0°C..+50°C
- Metal Detection - Protection Class
- IP54
- Metal Detection - Housing Material
- Stainless Steel
- Metal Detection - Storage Temperature
- -10°C..+50°C

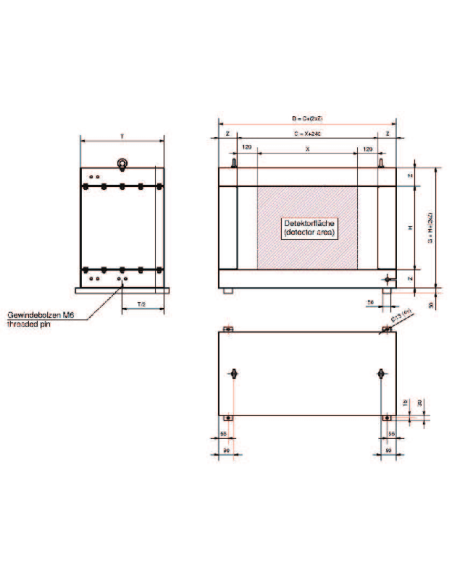

- Metal Detection - Height
- Active Sensor Opening; 100mm..800.. (50mm steps)
- Metal Detection - Width
- Active Sensor Opening; 300mm..2500mm (100mm steps)
- Metal Detection - Sensor Material Inside
- Epoxy
- Metal Detection - Mounting
- 4 x Drill holes
- Metal Detection - Control Unit
- Digital Plus or M-Pulse (Mounted directly to the Tunnel or up to 3m away)
