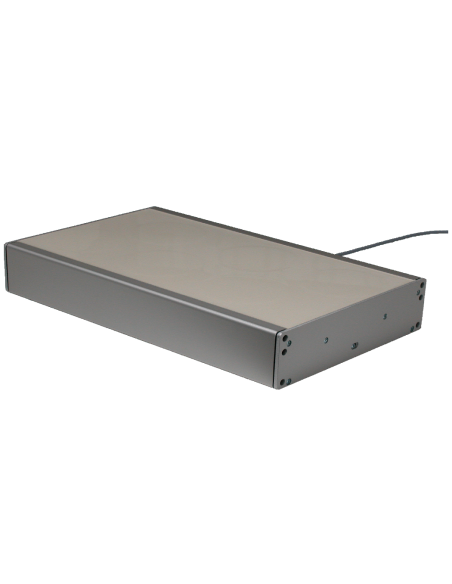

AMD-SP350 - SP Series Flat Sensors
AMD-SP350
SP Series Flat Sensor
Altech SP Series Flat Sensors are used on conveyor belts and chutes to detect all types of metal in the material being handled. They are used for quality checks and machine protection. Other applications include counting of objects and completeness checks.
Standard Features
- Various Width available
- No metal free zones necessary
- Stable and Shock proof Aluminum housing
- IP65
- Sensitivity adjustable via control unit
Downloads:
• Data Sheet
- Metal Detection - Operating Temp.
- 0°C..+50°C
- Metal Detection - Protection Class
- IP65
- Metal Detection - Housing Material
- Aluminum
- Metal Detection - Storage Temperature
- -10°C..+50°C
- Metal Detection - Dimensions
- Width x 210 x 60.5mm
- Metal Detection - Connection
- 2m PVC cable (other on request)
- Metal Detection - Fe Plate 30x30x1mm
- 95mm
- Metal Detection - Fe Plate 12x12x1mm
- 68mm
- Metal Detection - Nut M6
- 56mm
- Metal Detection - Nut M4
- 44mm
- Metal Detection - Nut M2.5
- 33mm
- Metal Detection - Fe Ball 7mm
- 44mm
- Metal Detection - Fe Ball 3mm
- 20mm
- Metal Detection - Fe Ball 2mm
- 8mm
- Metal Detection - Width
- 350mm
- Metal Detection - Length
- 150..1200mm
- Metal Detection - Active Surface
- Polyurethane
- Metal Detection - 1-Channel
- 8349005010/ 8349005012
- Metal Detection - 10-Channel
- 8349005000/ 8349005001
