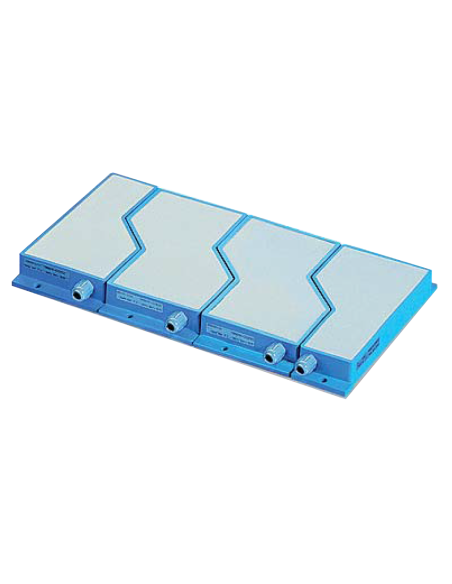

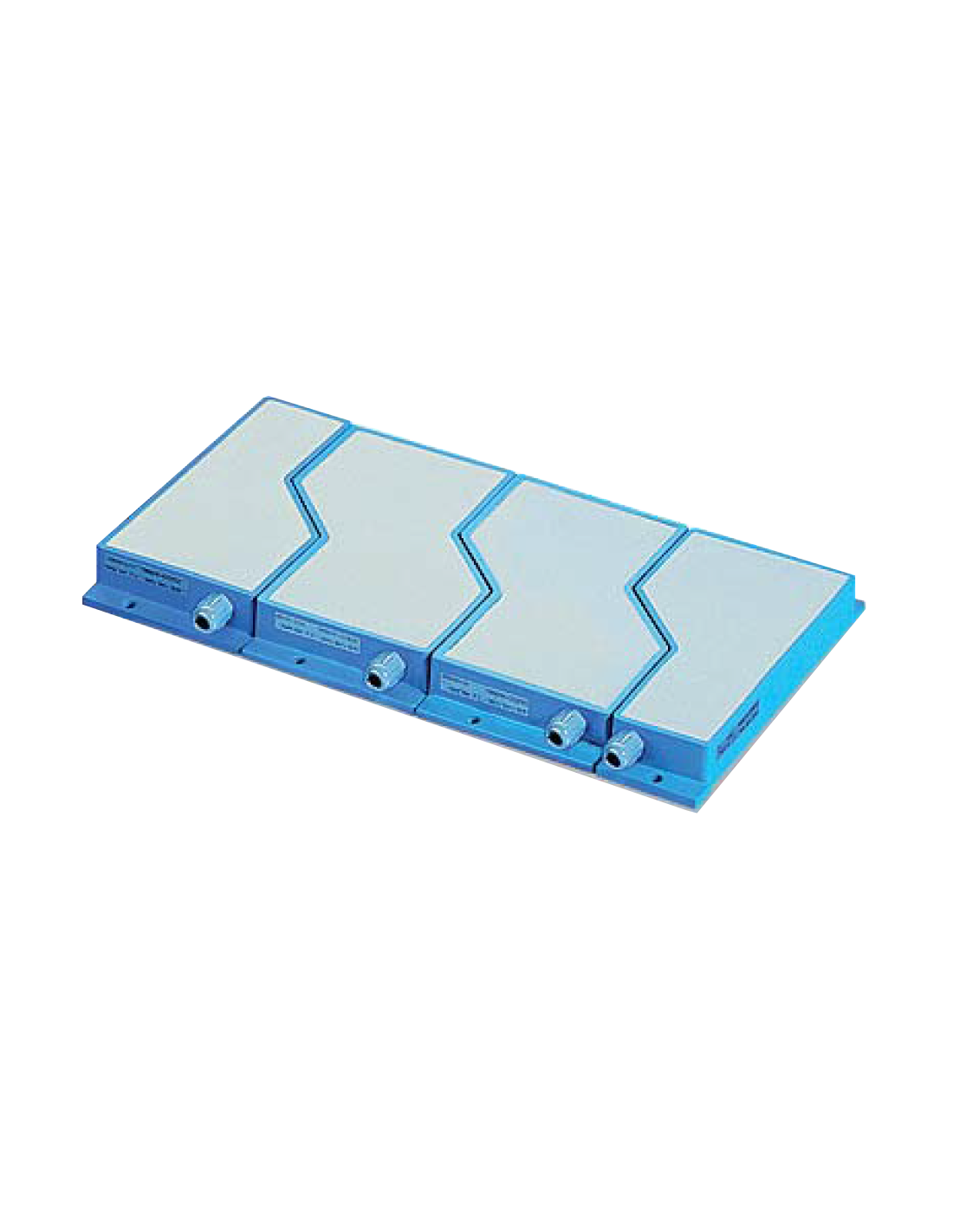

Module M95L - Modular Flat Pack Sensor
Altech Modular Flat Pack Sensors are used on conveyor belts and chutes to detect all types of metal in the material being handled. They are used for quality checks and machine protection. Other applications include counting of objects and completeness checks.
Standard Features
- Most Flexible and Modular System
- Dynamic output for highest sensitivity
- 1 and 10 Channel Control Unit
- IP65
Downloads:
• Data Sheet
- Metal Detection - Operating Temp.
- -10°C..+50°C
- Metal Detection - Protection Class
- IP65
- Metal Detection - Housing Material
- Aluminum
- Metal Detection - Storage Temperature
- -10°C..+50°C
- Metal Detection - Height
- 28mm (1.1")
- Metal Detection - Weight
- 800g (1.76lb.)
- Metal Detection - Detection Speed
- 1...300 ft/min
- Metal Detection - Connection
- 2m PVC cable (other on request)
- Metal Detection - Fe Plate 30x30x1mm
- 75mm
- Metal Detection - Fe Plate 12x12x1mm
- 55mm
- Metal Detection - Nut M6
- 45mm
- Metal Detection - Nut M4
- 35mm
- Metal Detection - Nut M2.5
- 26mm
- Metal Detection - Fe Ball 7mm
- 35mm
- Metal Detection - Fe Ball 3mm
- 15mm
- Metal Detection - Fe Ball 2mm
- 5mm
- Metal Detection - Frequency F1
- NO/NC
- Metal Detection - Frequency F2
- 100Hz
- Metal Detection - Frequency F3
- LED
- Metal Detection - Frequency F4
- M12, 4 pole
- Metal Detection - Width
- 95mm (3.7")
- Metal Detection - Length
- 205mm (8.1")
