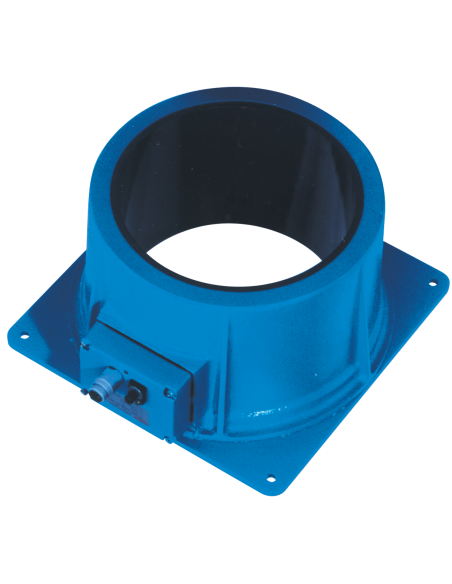

KJR-200AN-DNA-V2 - NPN Output, Normal Sensitivity Ring Sensor
KJR-200AN-DNA-V2
Normal Sensitivity Ring Sensor
Standard Features
- 10-30VDC Supply
- Detection and Counting Application
- Compact and Robust Design
- Static Sensor Technology
- Various Ring Diameters (50-300mm)
Downloads:
• Data Sheet
- Metal Detection - Output Type
- NPN
- Metal Detection - Ring Diameter
- 200mm (7.87in.)
- Metal Detection - Sensitivity
- 15.0mm (0.59in.)
- Metal Detection - Output
- NO/NC
- Metal Detection - Switching Frequency
- 300Hz
- Metal Detection - Switching State
- LED
- Metal Detection - Connector
- M12, 4 pole
- Metal Detection - Operating Voltage
- 10-30V DC
- Metal Detection - Off-state Current
- ≤10mA
- Metal Detection - Max. Load Current
- 200mA
- Metal Detection - Residual Current
- ≤10µA
- Metal Detection - Ripple Voltage
- ≤10%
- Metal Detection - Voltage Drop
- ≤2.4V
- Metal Detection - Hysteresis
- ≤15%
- Metal Detection - Operating Temp.
- -25°C to +70°C (-13°F to +158°F)
- Metal Detection - Protection Class
- IP54
- Metal Detection - Housing Material
- Aluminum
