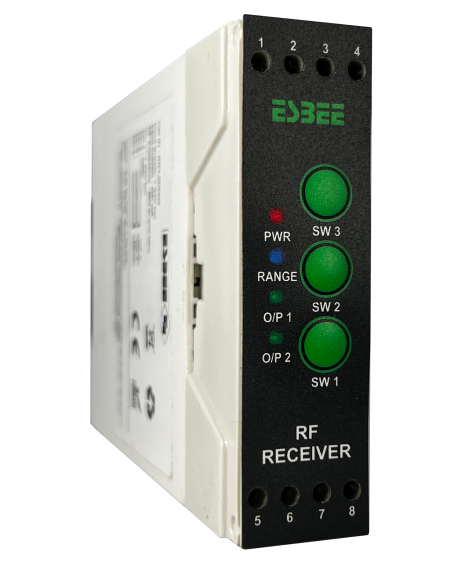

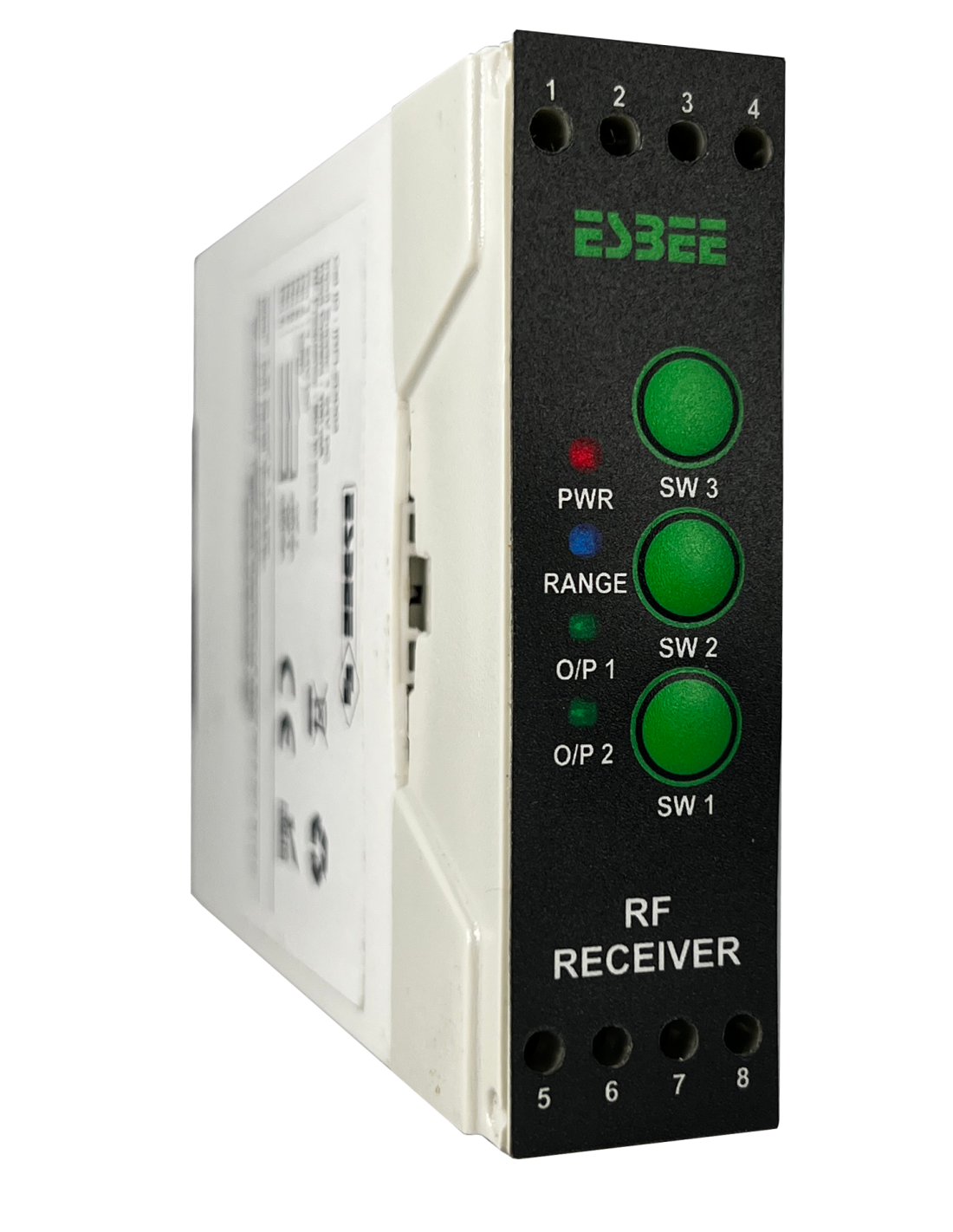

IRFLZDD03 RF Receiver
The Air-Push Series Wireless Push Button system brings flexibility to remote operation. Operating in the 863–870 MHz RF band, it delivers secure, interference-free communication with a range up to 100 m. Each unit is built from flame-retardant, RoHS- and REACH-compliant materials, ensuring durability and safety. Featuring replaceable batteries, quick installation, and IP54/IP20 protection, the Air-Push system offers seamless control and integration across industrial and commercial automation setups.
- Rated Voltage
- 24V DC
- Push Button Input Current
- 250mA
- Push Button Wattage
- 6W
- LED Indications
- Power: Red Signal: Blue O/P 1: Green O/P 2: Green
- Push Button Operating Range
- 100m, +/-10m
- RF Receiver Input
- 5.08mm Pitch Connector, PIN 1 & 2
- Relay Contact Rating
- 5A
- Signal Frequency Band
- 863 to 870MHz
- Push Button Supply Voltage
- 15–30V DC
