    3805237 - Conduit Gland SEM-FAST angled 90°

    3805237

    3805237 - Conduit Gland SEM-FAST angled 90°

    PG48 - Quick- Mounting System for Polyflex PA 6 Conduit/ Conduit Gland SEM-FAST angled 90°/ Metric

     DATA Sheet Link

    < Product photo may vary depending on part number selection.

    Material:

    • Polyamide 66

    Technical Properties:

    •  Easy and tight single hand mounting
    • Insert tube in “closed” gland
    • Special click- in system
    • Conical sealing on the corrugated tube
    • Thread side sealed by integral sealing ridges
    • Gray available
    • Conduit can be rotated within the mounting gland
    • Halogen free
    Applications:
    • All fields using conduit
    Mounting Instructions:
    Insert the conduit with a short twist all the way into the end of the SEM conduit gland.
    Pull the tube back slightly to latch it securely.

    Related products and accessories

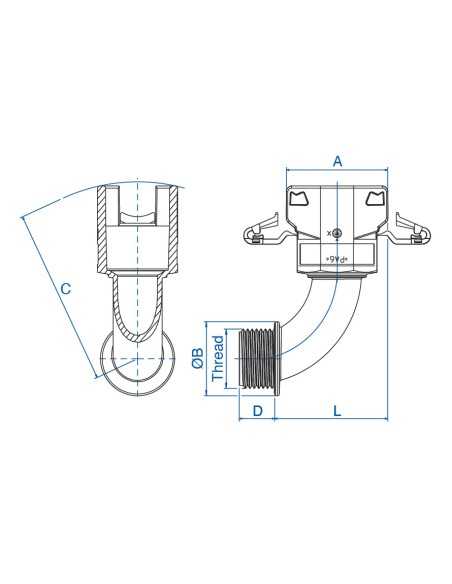

    Width (mm)
    129.0
    Material
    Polyamide 66
    Thread
    PG48
    Temperature Range
    -40 to 120°C (-40 to 248°F)
    Standard Package
    5
    Thread Type
    PG
    For tube size (NW)
    50
    Thread Length (mm)
    19
    Overall Depth (mm)
    99.8
    Connector Depth (mm)
    72.0
