    3805004 - Quick-Mounting System for Polyflex PA 6 Conduit

    3805004

    3805004 - Quick- Mounting System for Polyflex PA 6 Conduit

    PG9 - Quick Mounting System for Polyflex PA 6 Conduit/ Conduit Gland SEM-FAST Straight/ Metric

     DATA Sheet Link

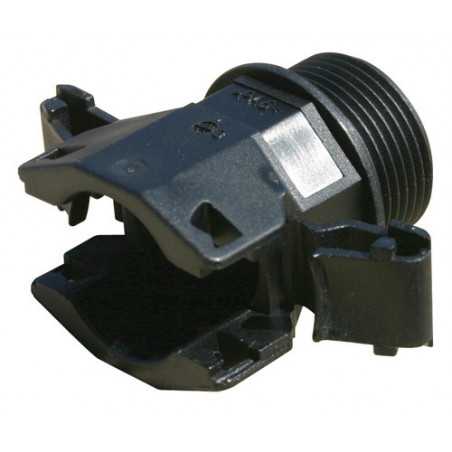

    < Product photo may vary depending on part number selection.

    Material:

    • Polyamide 66

    Technical Properties:

    • Easy and tight single hand mounting
    • Insert tube in the “closed” gland
    • Special click- in system
    • Conical sealing on the corrugated tube
    • Gray available
    • Thread side sealed by integral sealing ridges
    • Conduit can be rotated within the mounting gland
    • Halogen free
    Applications:
    • All fields using conduit
    Mounting Instructions:
    Insert the conduit with a short twist all the way into the end of the SEM conduit gland.
    Pull the tube back slightly to latch it securely.

    Related products and accessories


    Width (mm)
    17
    Material
    Polyamide 66
    Thread
    PG9
    Thickness (mm)
    21.6
    Temperature Range
    -40 to 120°C (-40 to 248°F)
    Standard Package
    50
    Thread Type
    PG
    For tube size (NW)
    10
    Gland Type
    Straight
    Thread Length (mm)
    12
    Overall Length (mm)
    36
    3805004
