Disconnect Switches

Over 370 parts to choose from.

Disconnect switches provide a means of quickly disconnecting mechanical or electronic systems from their primary power source safely.

Across the line, motor starting - up to 300hp @ 600V
General Use Rating - 16A to 400A @ 600V
Available as through door, door/panel mount, or fully enclosed options
Short circuit withstand ratings up to 100kA possible with backup fusing
Complete range of accessories including auxiliary contacts, rotary handles, changeover kits, and more

Catalog Downloads General Catalog UL 98 Dual AC/DC Rated

Click here to filter by individual part for detailed information and downloads.

LSF Series

AC/DC Extended/Direct Handle Motor Disconnect Switch

Dual AC/DC rated; click for the data sheet
Integrated Base and DIN-Rail Mounting
Loadsafe LSF Series
Switch make/break operation is independent from operator’s actuation speed
Silver contacts ensures safe and durable operation
UL 60947-4-1

UL98 Series

Extended/Direct Handle Motor Disconnect Switch

3 and 4 poles
30 A, 60 A, or 100 A
Every design is lockable in OFF position
Switching mechanism speed is independent fromthe operator
Enclosed models or polycarbonate, stainless steelor sheet metal

RT Series

AC /DC Door Mount Motor Disconnect Switch

Dual AC/DC rated; click for the data sheet
Integrated door or side panel mounting
Rear facing terminals for easy installation
Loadsafe RT Series
Switch make/break operation is independent fromoperator’s actuation speed
Silver contacts ensures safe and durable operation
UL Disconnect Switches 16-40 A
UL 60947-4-1

UL98 Larger Series

200A or 400A UL 98 Motor Disconnect Switch

UL98
Unique industry feature: Plastic materials can be 100% recycled.
Switch make/break operation is independent fromoperator’s actuation speed.
Reliable switch for demanding industrial applications.
Contact position check/contact condition inspectionwindow for every pole.
Maximum horsepower rating 300 hp @ 600V AC.

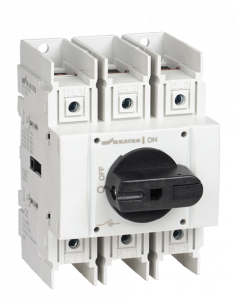

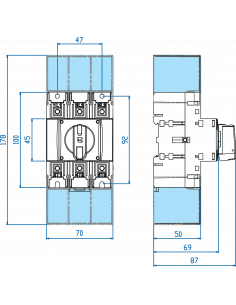

KU Series

Extended / Direct Handle Motor Disconnect Switch

3-4 poles
General Purpose Current: 25A - 150A
Maximum Voltage: 600V AC
Motor FLA @ 480V AC: 17.5A - 34A
Motor FLA @ 600V AC: 11A - 83A
1 Phase and 3 Phase Horsepower Rating
Short Circuit withstand Rating at 600V with Max. Fuse
Terminal Size Acceptability: 14-8AWG - 4-1/0AWG

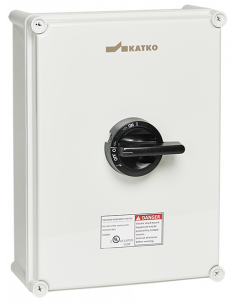

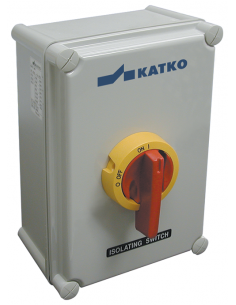

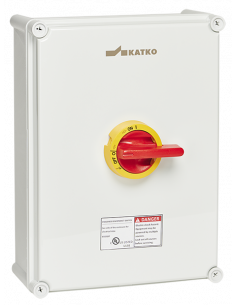

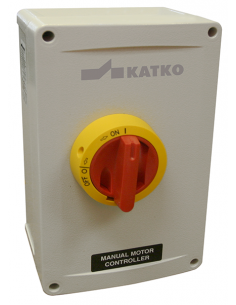

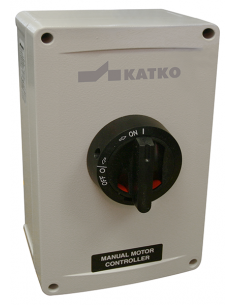

KEM Series

Polycarbonate Enclosed Motor Disconnect Switch

Can be used locally at the motor
UL Type 4X
IEC IP65 Protection Level
UV resistant
Resistant to many chemicals
Lockable - Defeatable Handle

Accessories

Extended Handle Accessory

Door Interlock Handles
Door Interlock Shaft
Auxiliary Switches Fuse
Holder Direct Handles
Door Mountng Kits
Mounting Alternatives - Aluminum DIN Rail

KEA Series

Aluminum Enclosed Motor Disconnect Switch

Can be used locally at the motor
UL Type 4
Excellent in harsh weather conditions
UV resistant
Resistant to many chemicals
IP66 Protection Level
Lockable and Defeatable Handle

KUE Series

Toggle Extended/Direct Handle Motor Disconnect Switch

3 poles
General Purpose Current: 25A - 60A
Maximum Voltage: 600V AC
Motor FLA @ 480V AC: 17.5A - 34A
Motor FLA @ 600V AC: 11A - 27A
1 Phase and 3 Phase Horsepower Rating
Short Circuit withstand Rating at 600V with Max. Fuse
Terminal Size Acceptability: 14-8AWG - 12-4AWG

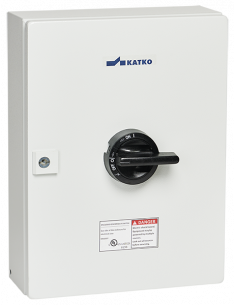

KET Series

Sheet Metal Enclosed Motor Disconnect Switch

Can be used locally at the motor
UL Type 4
Excellent in harsh weather conditions
Resistant to many chemicals
Corrosion and UV resistant
IP65 Protection Level
Lockable and Defeatable Handle

EVA Series

Toggle with cover Extended/Direct Handle Motor Disconnect Switch

3 poles
General Purpose Current: 80A - 150A
Maximum Voltage: 600V AC
Motor FLA @ 600V AC: 47A - 83A
1 Phase and 3 Phase Horsepower Rating
Short Circuit withstand Rating at 600V with Max. Fuse
Terminal Size Acceptability: 4-1/0AWG

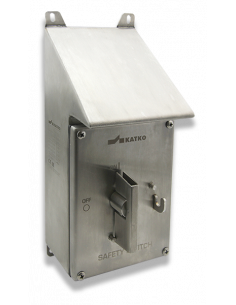

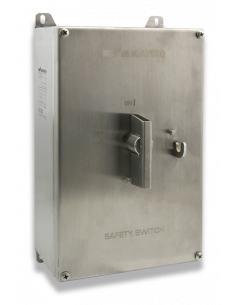

KER Series

Stainless Steel Enclosed Motor Disconnect Switch

Can be used locally at the motor
UL Type 4X
Ideal where chemicals are used for cleaning andmaintenance such as food processing and breweries
Mining is another application area
Stainless Steel (Grade AISI 316)
Corrosion Resistant
IP66 Protection Level
Lockable - Defeatable Handle

Filters

Showing 1-24 of 39 item(s)

VKA3100N - 100 A 3 pole Extended/Direct Handle Motor Disconnect Switch

VKA3100N

Extended/Direct Handle Motor Disconnect Switch UL60947-4-1A (Formerly UL508) Listed Manual Motor Controllers with Disconnecting MeansOne of the smallest 80 A switches in the industry Advanced switch technology (use of silver contacts ensures safe and durable operation) Across the line, motor starting - up to 75 hp/600V •General Use Rating - 16 A to...
