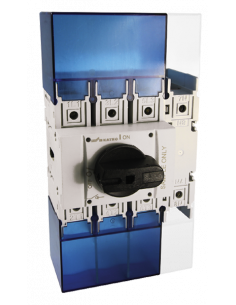

Disconnect Switches

Over 370 parts to choose from.

Disconnect switches provide a means of quickly disconnecting mechanical or electronic systems from their primary power source safely.

  • Across the line, motor starting - up to 300hp @ 600V
  • General Use Rating - 16A to 400A @ 600V
  • Available as through door, door/panel mount, or fully enclosed options
  • Short circuit withstand ratings up to 100kA possible with backup fusing
  • Complete range of accessories including auxiliary contacts, rotary handles, changeover kits, and more

 Catalog DownloadsGeneral CatalogUL 98Dual AC/DC Rated

Click here to filter by individual part for detailed information and downloads.

LSF Series

AC/DC Extended/Direct Handle Motor Disconnect Switch

  • Dual AC/DC rated; click for the data sheet
  • Integrated Base and DIN-Rail Mounting
  • Loadsafe LSF Series
  • Switch make/break operation is independent from operator’s actuation speed
  • Silver contacts ensures safe and durable operation
  • UL 60947-4-1

UL98 Series

Extended/Direct Handle Motor Disconnect Switch

  • 3 and 4 poles
  • 30 A, 60 A, or 100 A
  • Every design is lockable in OFF position
  • Switching mechanism speed is independent fromthe operator
  • Enclosed models or polycarbonate, stainless steelor sheet metal

RT Series

AC /DC Door Mount Motor Disconnect Switch

  • Dual AC/DC rated; click for the data sheet
  • Integrated door or side panel mounting
  • Rear facing terminals for easy installation
  • Loadsafe RT Series
  • Switch make/break operation is independent fromoperator’s actuation speed
  • Silver contacts ensures safe and durable operation
  • UL Disconnect Switches 16-40 A
  • UL 60947-4-1

UL98 Larger Series

200A or 400A UL 98 Motor Disconnect Switch

  • UL98
  • Unique industry feature: Plastic materials can be 100% recycled.
  • Switch make/break operation is independent fromoperator’s actuation speed.
  • Reliable switch for demanding industrial applications.
  • Contact position check/contact condition inspectionwindow for every pole.
  • Maximum horsepower rating 300 hp @ 600V AC.

KU Series

Extended / Direct Handle Motor Disconnect Switch

  • 3-4 poles
  • General Purpose Current: 25A - 150A
  • Maximum Voltage: 600V AC
  • Motor FLA @ 480V AC: 17.5A - 34A
  • Motor FLA @ 600V AC: 11A - 83A
  • 1 Phase and 3 Phase Horsepower Rating
  • Short Circuit withstand Rating at 600V with Max. Fuse
  • Terminal Size Acceptability: 14-8AWG - 4-1/0AWG

KEM Series

Polycarbonate Enclosed Motor Disconnect Switch

  • Can be used locally at the motor
  • UL Type 4X
  • IEC IP65 Protection Level
  • UV resistant
  • Resistant to many chemicals
  • Lockable - Defeatable Handle

Accessories

Extended Handle Accessory

  • Door Interlock Handles
  • Door Interlock Shaft
  • Auxiliary Switches Fuse
  • Holder Direct Handles
  • Door Mountng Kits
  • Mounting Alternatives  - Aluminum DIN Rail

KEA Series

Aluminum Enclosed Motor Disconnect Switch

  • Can be used locally at the motor

  • UL Type 4

  • Excellent in harsh weather conditions

  • UV resistant

  • Resistant to many chemicals

  • IP66 Protection Level

  • Lockable and Defeatable Handle

KUE Series

Toggle Extended/Direct Handle Motor Disconnect Switch

  • 3 poles
  • General Purpose Current: 25A - 60A
  • Maximum Voltage: 600V AC
  • Motor FLA @ 480V AC: 17.5A - 34A
  • Motor FLA @ 600V AC: 11A - 27A
  • 1 Phase and 3 Phase Horsepower Rating
  • Short Circuit withstand Rating at 600V with Max. Fuse
  • Terminal Size Acceptability: 14-8AWG - 12-4AWG

KET Series

Sheet Metal Enclosed Motor Disconnect Switch

  • Can be used locally at the motor

  • UL Type 4

  • Excellent in harsh weather conditions

  • Resistant to many chemicals

  • Corrosion and UV resistant

  • IP65 Protection Level

  • Lockable and Defeatable Handle

EVA Series

Toggle with cover Extended/Direct Handle Motor Disconnect Switch

  • 3 poles
  • General Purpose Current: 80A - 150A
  • Maximum Voltage: 600V AC
  • Motor FLA @ 600V AC: 47A - 83A
  • 1 Phase and 3 Phase Horsepower Rating
  • Short Circuit withstand Rating at 600V with Max. Fuse
  • Terminal Size Acceptability: 4-1/0AWG

KER Series

Stainless Steel Enclosed Motor Disconnect Switch

  • Can be used locally at the motor
  • UL Type 4X
  • Ideal where chemicals are used for cleaning andmaintenance such as food processing and breweries
  • Mining is another application area
  • Stainless Steel (Grade AISI 316)
  • Corrosion Resistant
  • IP66 Protection Level
  • Lockable - Defeatable Handle
